Titlei6100 - Adjust the Ribbon Guides
Body

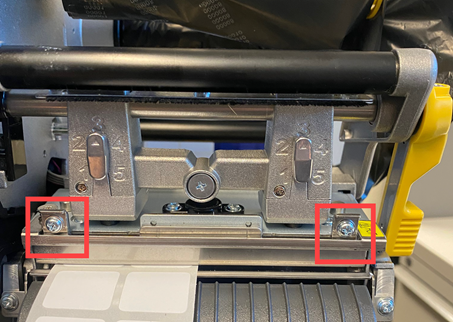

Adjust the ribbon guides if wrinkled ribbon is causing lines or blank areas on printed labels.



Caution: Do not adjust the ribbon guides while the printer is printing. The printer could be damaged.

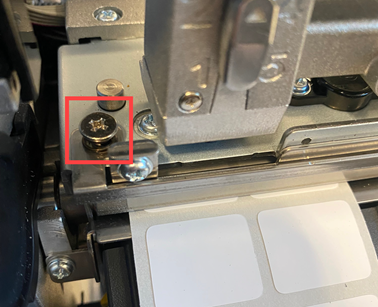

Ribbon Guide A



  1. Slightly loosen the screw fastened to ribbon guide A using a Phillips screwdriver.

  1. Adjust the guide up or down.

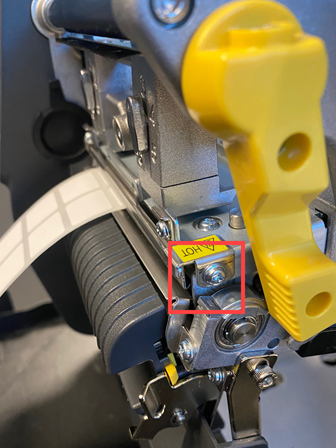

Ribbon Guide B



  1. Slightly loosen the screw fastened to the ribbon guide B using a Phillips screwdriver.





  1. Adjust the guide forward or backward.
