i6100 - Adjust the Present Setting on the Peel Mode

The Peel Mode will present a new label when the label is peeled off of the liner if peel mode is enabled.

If the setting is enabled, the sensor is green. If the setting is disabled, the sensor is not lit up green.

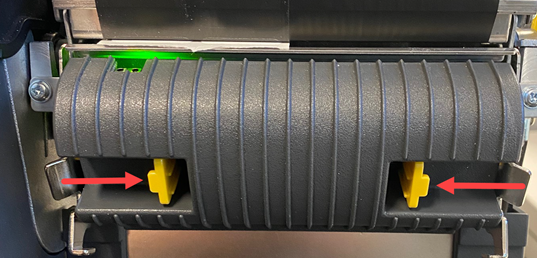

1. Press the two yellow tabs in to release the peel plate and pull forward to drop it down.

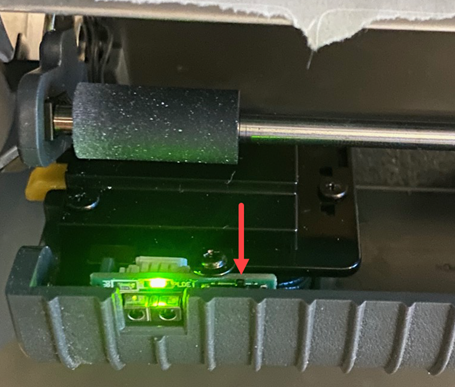

2. To the right of the sensor, there is a black switch. Push the switch to the left to turn the peel sensor off or to the right to turn the peel sensor on.

3. Close the peel plate by pushing up until it clicks in place.
