Body | Note: This procedure adjusts the v-block and other settings for larger diameter wires within the supported .06-.6" wire diameter range. This procedure does not allow the Wraptor A6500 to wrap wires outside of the .6" maximum diameter.
You will sometimes (not always) need to adjust the wrapper for wire bundles. This will most likely be necessary when the bundle contains large wires. To do this:
1. On the home page of the printer’s touch screen, tap Load Supplies and then tap Load Supply. This moves the printer shuttle to the back position.
2. Power off and unplug the Wraptor™ A6500 printer.
3. Open the front (clear) door on the Wraptor™ A6500 printer.

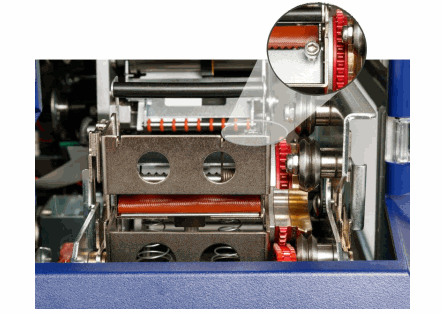

4. Unscrew the #8-32 socket head cap screw as necessary to retract the roller enough to accommodate the wire bundle.
5. Close the front door.
6. Wrap the large wire bundles.
Tip: In addition to these steps, try twisting the wire bundle and holding the wire taut when inserting into the jaws. |
|
|---|
