Adjust Print offset

Print offset moves the image slightly in one direction or another on the label. Adjust Offset is typically used to do a fine adjustment of the printed image on a die-cut label, or to move the image slightly closer or further from the edge of a continuous supply.

Horizontal Offset shifts the printed portion of the label to the right or left. Vertical Offset shifts the printed portion of the label up or down.


Adjust Print Offset Settings

  1. Enter text on your label.

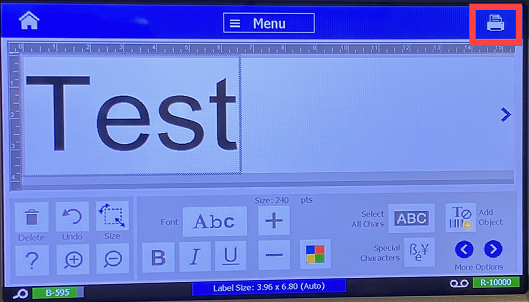

  1. Select the printer icon in the top right corner.
Print label

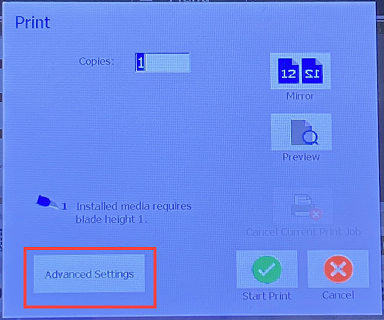

  1. Select Advanced Settings.
Print_Advanced Settings

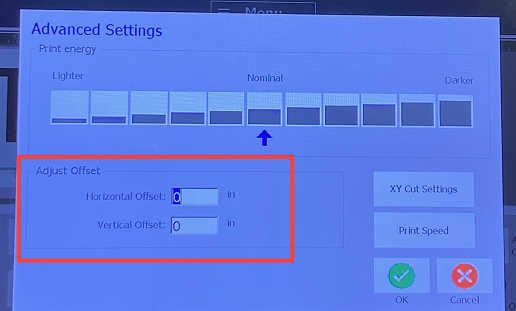

  1. In the Adjust Offset area, touch the horizontal and/or vertical offset data field and enter the adjustment value.
 Advanced settings_Print Offset

  1. Select OK when finished with Advanced Settings. You are returned to the Print dialog box.

  1. Select Start Print when you are ready to print.
