Body | This information can also be found on page 24 of the J1000 User Manual: J1000 - User Manual and Quick Start Guide
Replacing the Service Station
Replace the service station every six months or when the ink well is becoming full of ink.
To check the ink well and replace the service station:
1. On the printer touch screen, tap the Maintenance button.
2. Tap Service Station.

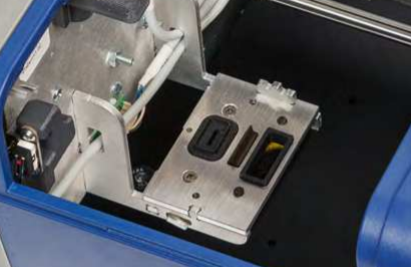

3. The printer moves internal components so that the service station is accessible. When it is finished moving, open the cover on top of the printer to check the ink well. 4. If you need to replace the service station, lift out the old one taking care not to spill ink from the well. Insert the new service station as shown above.
5. Close the cover on the printer and then tap OK on the touch screen. |
|
|---|
