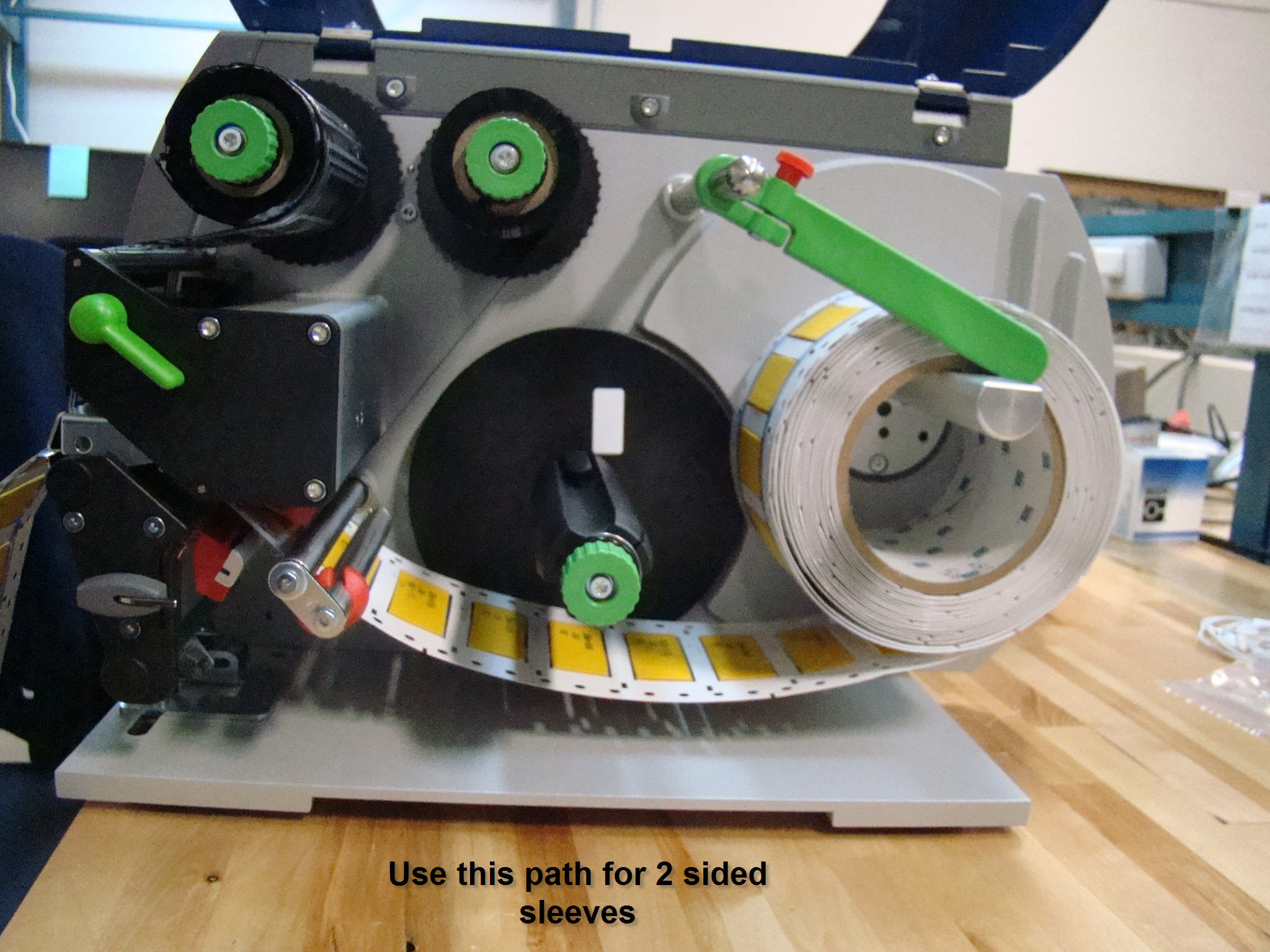

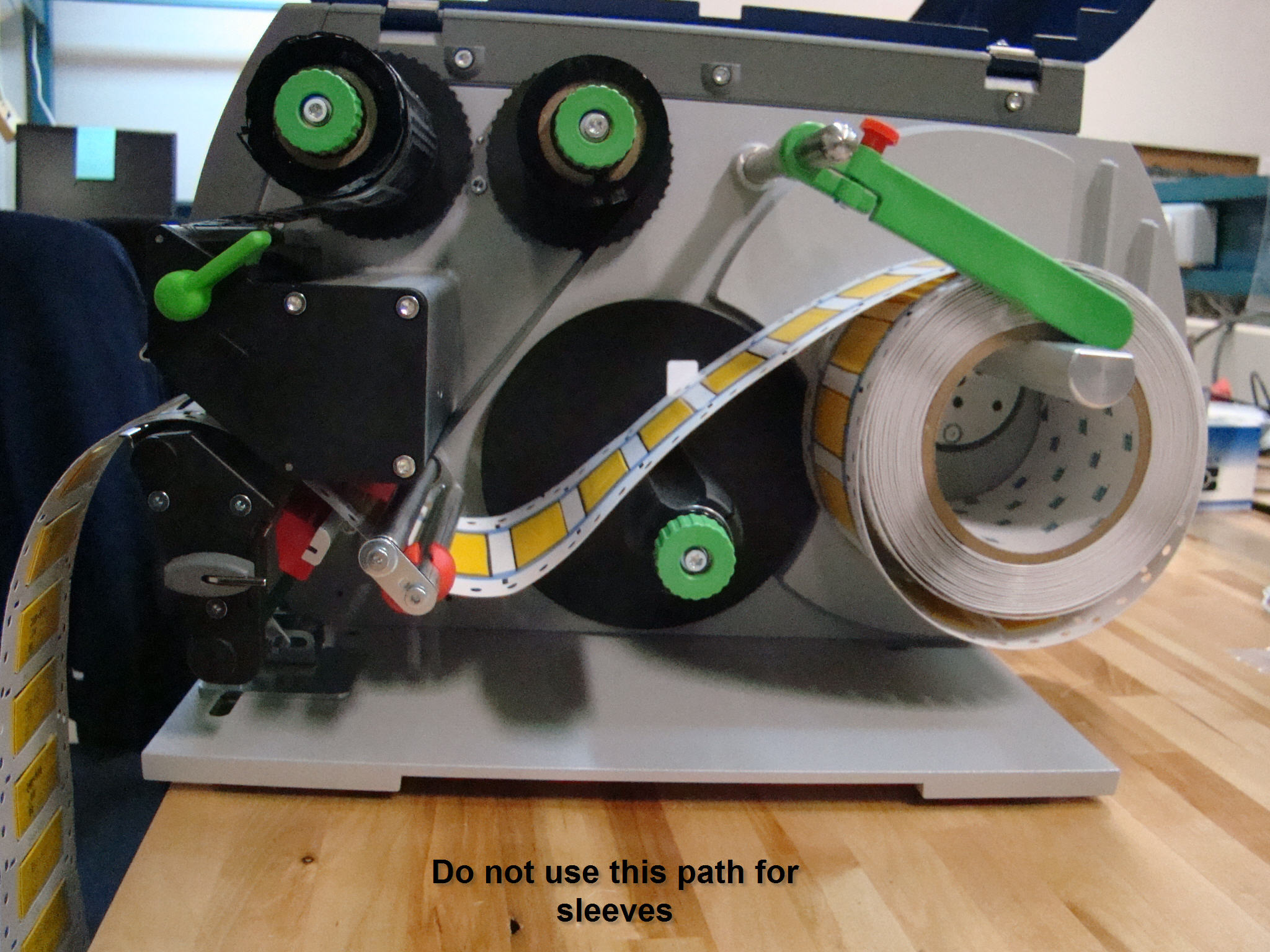

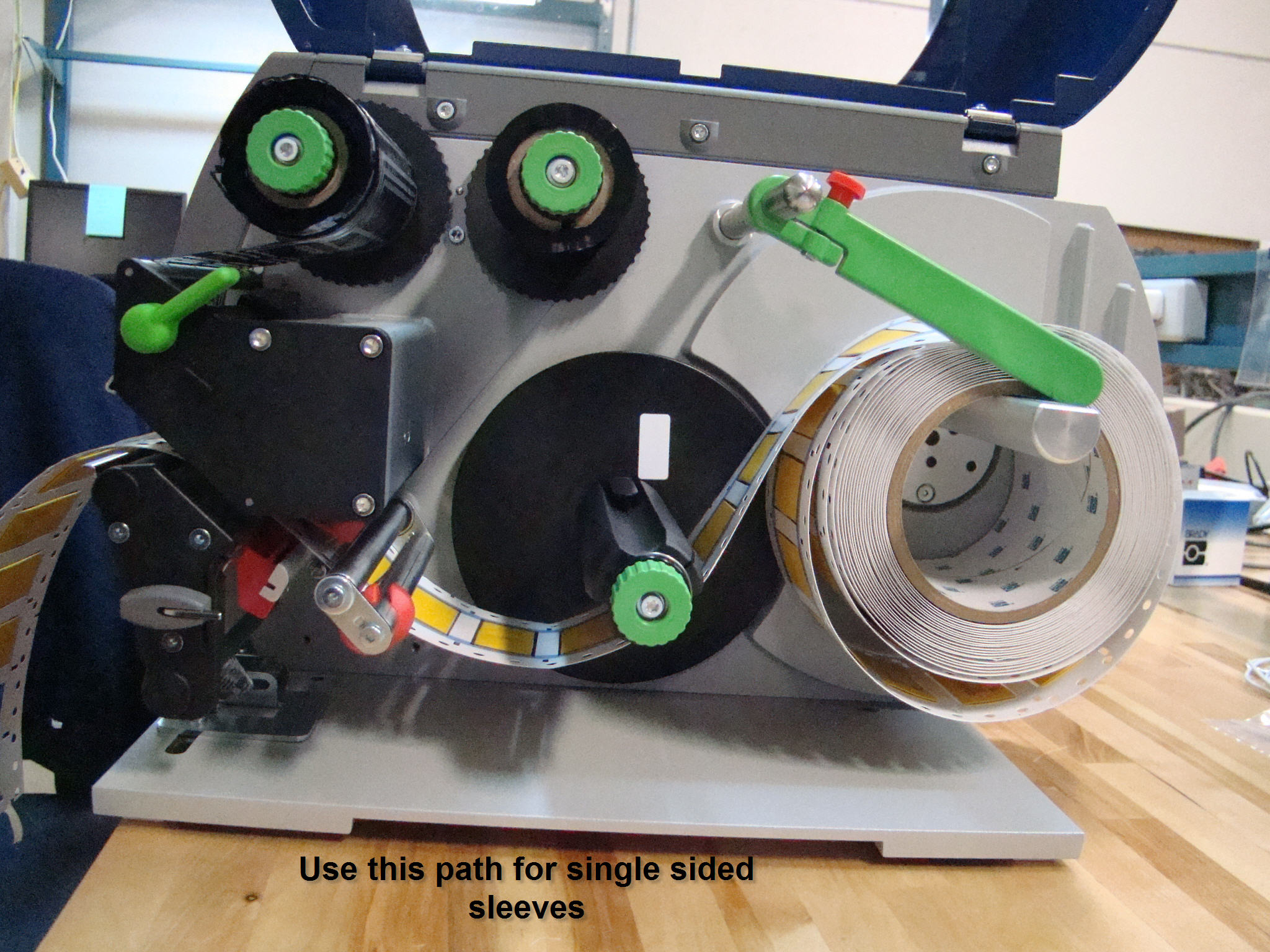

Body | Attached are pictures showing preferred/not preferred routes for the permasleeve/heatex materials in PR+ printer with internal rewind / Peel & Present system.
We have found that if sleeves are used with certain routes it is more prone to jam around notch sensor and printhead area. We do not recommend using the internal rewind functionality at all with sleeves. If you are using a PR+ without a Peel and Present system in it, material feeding from the bottom is still recommended.
 |
|
|---|
