Connect the M611 Label Printer through Bluetooth
Note: The M611 Label Printer can connect up to 5 devices at a time. This is the M611 Label Printer with the Authentic A mark on the right above the LCD screen.
Bluetooth Status Light:
- No Bluetooth symbol displays - Bluetooth is turned off on the printer.
- Bluetooth symbol is grayed out - Bluetooth is on, but not connected to a mobile device.
- Bluetooth symbol is white - Bluetooth is on and is connected to a mobile device.
Enable or Disable Bluetooth on the printer from a Mobile Device

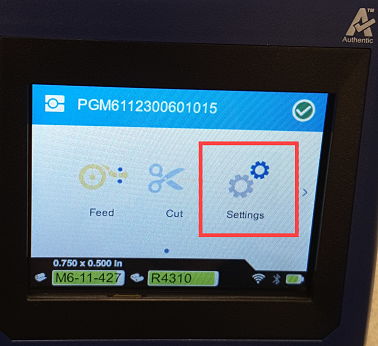

- Select Settings on the printer.
- Select Connection.

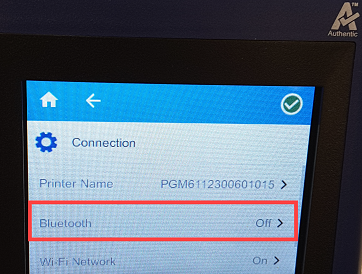

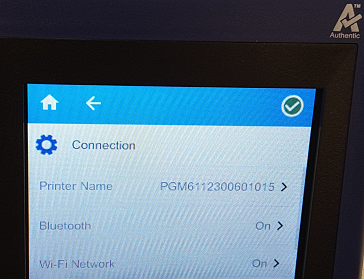

- Select Bluetooth.

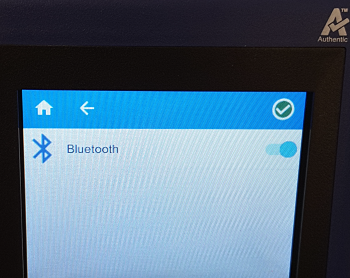

- Press to enable or disable Bluetooth. Right is enabled and left is disabled.
Connect the printer to a mobile device via Bluetooth
- Turn on the printer.
- Verify Bluetooth is enabled on the printer following prior instructions.
- Open the Express Labels Mobile application.

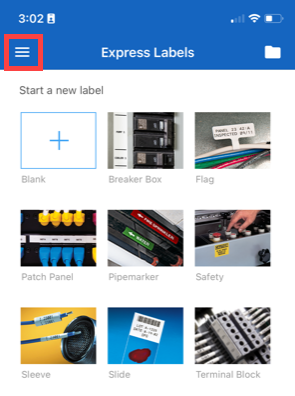

- Select Menu.

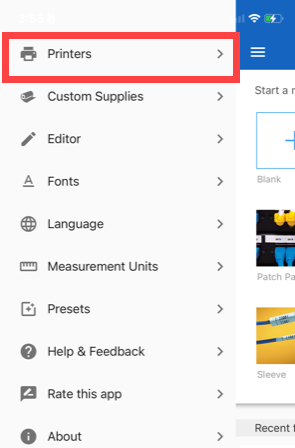

- Select Printers.
- The printer serial number may appear. If so, select the serial number. If the serial number does not display, select the yellow circle with the plus sign and select M611.

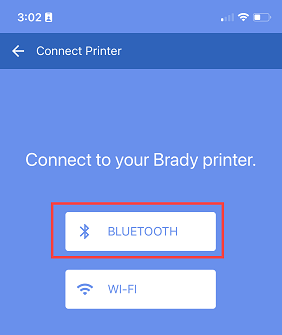

- Select Bluetooth.
- Select Done.

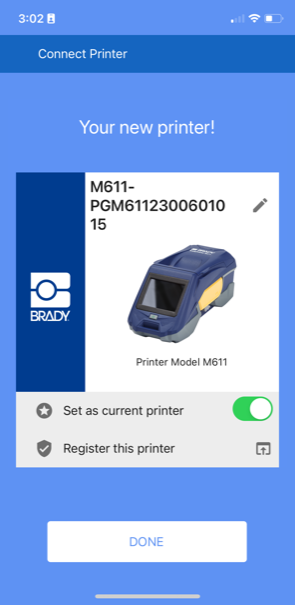

- Change the printer name, if desired, and select the control to connect the printer.
