M610 - Labels and AreasMultiple labels can be created in one label file with each new label being inserted immediately after the current label.
Areas are used to apply different formatting such as justification, rotation and frames to different parts of a single label. Areas can only be added when using a continuous label supply set to auto length mode. However, area formatting can be applied to pre-sized labels that have pre-defined areas.
Note: You cannot set a fixed length of an area on a label that has multiple areas. The size of the area is based on the amount of data entered and the font size of that data.
Labels and Areas on the M610:

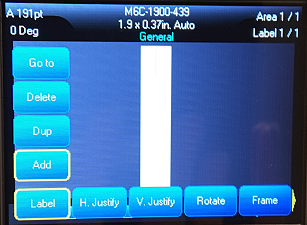

- Press LABEL.
- Choose Add.
The new label is inserted immediately after the current label and its number is reflected in the upper right corner of the screen. Each label added will be of the same label type.
If the existing label had multiple areas, the added label has the same number of areas and the font size from the first line of data in each area is retained.Add an Area
- Press FN.
- Press Area.
- Choose Add.
Note: The font size used on the first line of the previous area carries over to the new area.

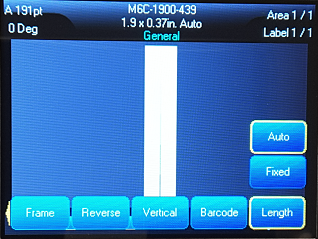

- Press LABEL.
- Select Length.
- Select Fixed.
Note: Length is not available if you are using a pre-sized label supply.

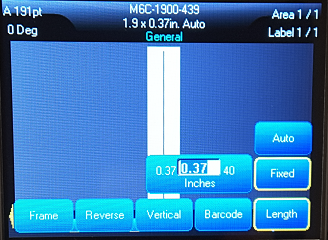

- Enter the desired length of the label into the field.
- Press ENTER.
Note: The minimum and maximum values for the label supply installed are shown to the left and right of the type-in field.
Go to Label or Area
- Press LABEL or FN and AREA.
- Select Go to and enter the number of the label/area desired.
- Select Enter.
Shortcut Keys
- Press NEXT LABEL to go to the next label in the file.
- Press FN and PREV LABEL to go to the previous label in the file.
- Press NEXT AREA to move to the next area within a label with multiple areas configured.
- Press FN and PREV AREA to move to the previous area within a label with multiple areas configured.
- Press FN and the left navigation key to move to the previous label or area within a label with multiple areas configured or FN and the right navigation key to move to the next label or area.
Delete Label or Area
- Navigate to the label or area you want to delete.
- Press LABEL if deleting a label or press FN and AREA if deleting an area.
- Choose Delete.
- Select Yes on the confirmation message.
Duplicate Label or AreaDuplicating a label retains all formatting and content of the label being duplicated. If multiple areas exist on the label, they will also exist on the duplicate label.
- Navigate to the label to the duplicate.
- Press Label.
- Select Dup.
