LabelMark 5/6 & Wraptor - How to convert multiple Labelmark label files to the .prn format at one time

« Go Back

Content


Article Number000010793
TitleLabelMark 5/6 & Wraptor - How to convert multiple Labelmark label files to the .prn format at one time
Body

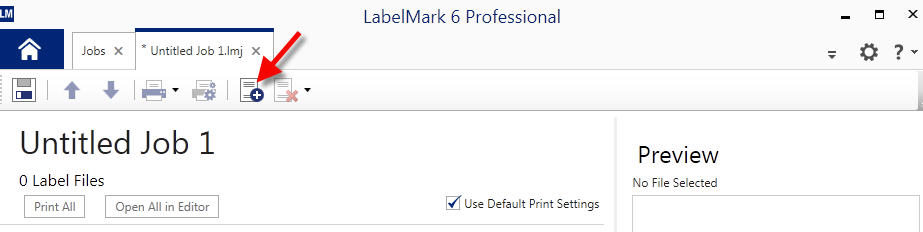

1.Open Labelmark 5, click on Tools then Manage Jobs and click on New Job / Open Labelmark 6, click on Manage then Jobs and click on New Job.

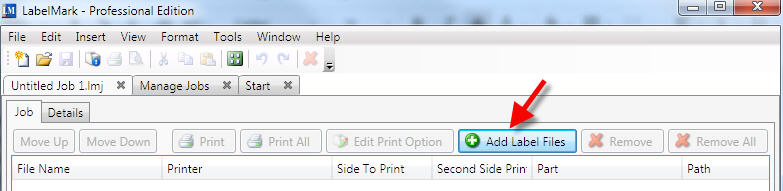

2. Click on the Add Label Files button in the upper right.

User-added image


 User-added image

3. Select your files. If all of them are in one folder, you can click on the first label file to select it, then hold down the Shift key as you click on the last label file in the list, this will select the first and last label files you clicked on, and every file in between.

4. Now when you click on Open, it will pull all the files into the print job list.

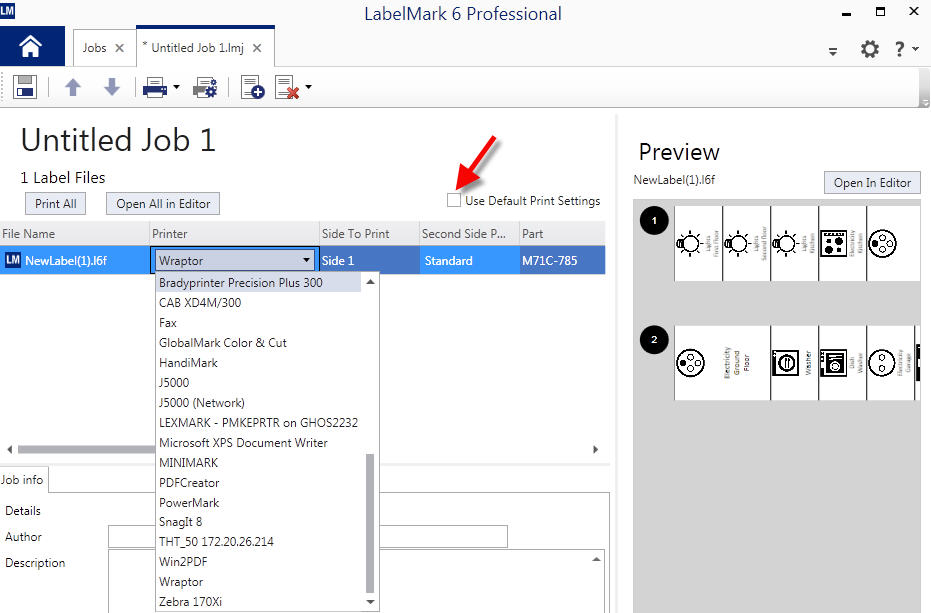

5. Select the Wraptor as the Printer for each file then click on Print All. If you watch for the File tab on the Wraptor's LCD display, you will see it populate all of the files you selected.

  • Note: For Labelmark 6 you might need to uncheck the Use Default Print Settings box to have the option to select the Wraptor as the printer for each file.


User-added image
