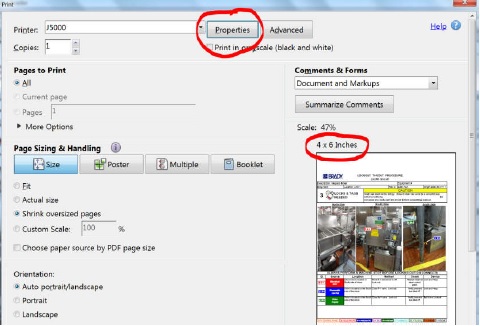

2. Select "File" then "Print" and you will see this dialog box appear. Choose "J5000" Note default size shown in sample is 4 X 6".

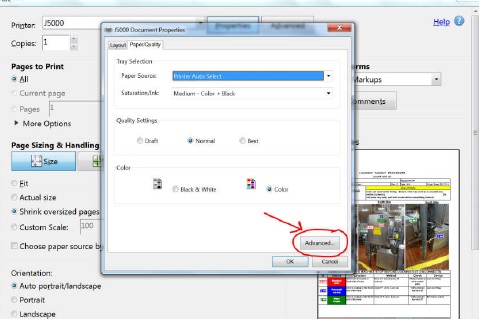

3. Select the "Advanced..." button found on the "Paper/Quality" tab.

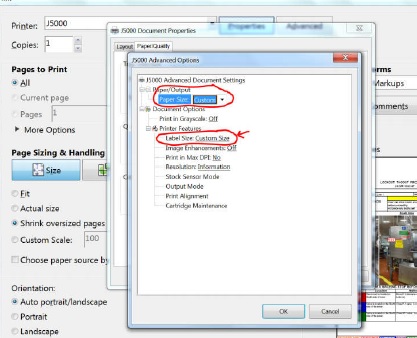

4. Select "Custom" paper size in "Paper/Output" setting. Click on "Custom Size" link in the "Label Size" setting.

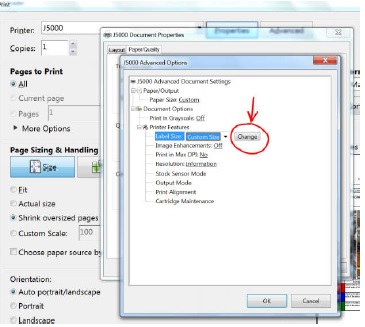

5. Select 'Change" and input your correct size

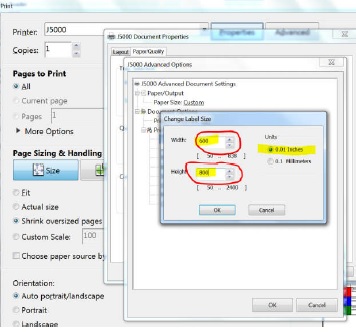

6. Resize to your label. In this case you have to make sure "inches" is selected as the proper unit value. Then adjust in .01 increments so a 6" X 8" label is "600 X 800" Click "OK" through the various screens

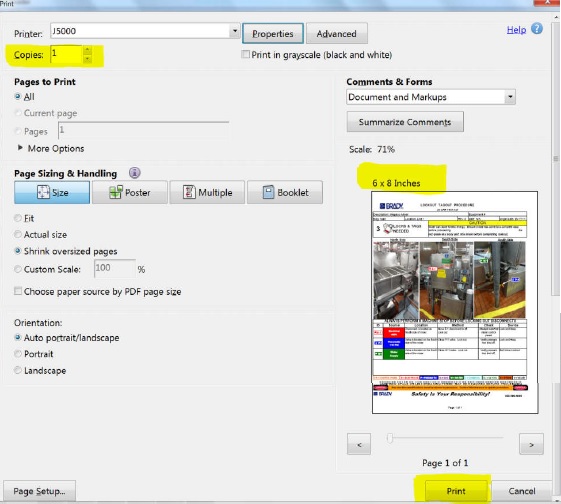

7. Verify that the correct size is shown, select quantity and select "Print"
NOTE: You will be unable to correctly size the PDF if you have Adobe Standard instead of Adobe Pro, per limitation of the Standard version of Adobe (it costs less because it does less). Per the Adobe Acrobat Price & Feature Comparison (scroll down to Create PDFs section), the Standard version does not "Create technical PDFs in Microsoft Project, Visio, or Autodesk AutoCAD"
Please contact Brady Technical Support for any troubleshooting necessary. Hours: Mon-Fri 7AM to 6PM CST Phone: 800-643-8766 Email: tech_support@bradycorp.com
