This information can also be found on page 4 of the user guide.

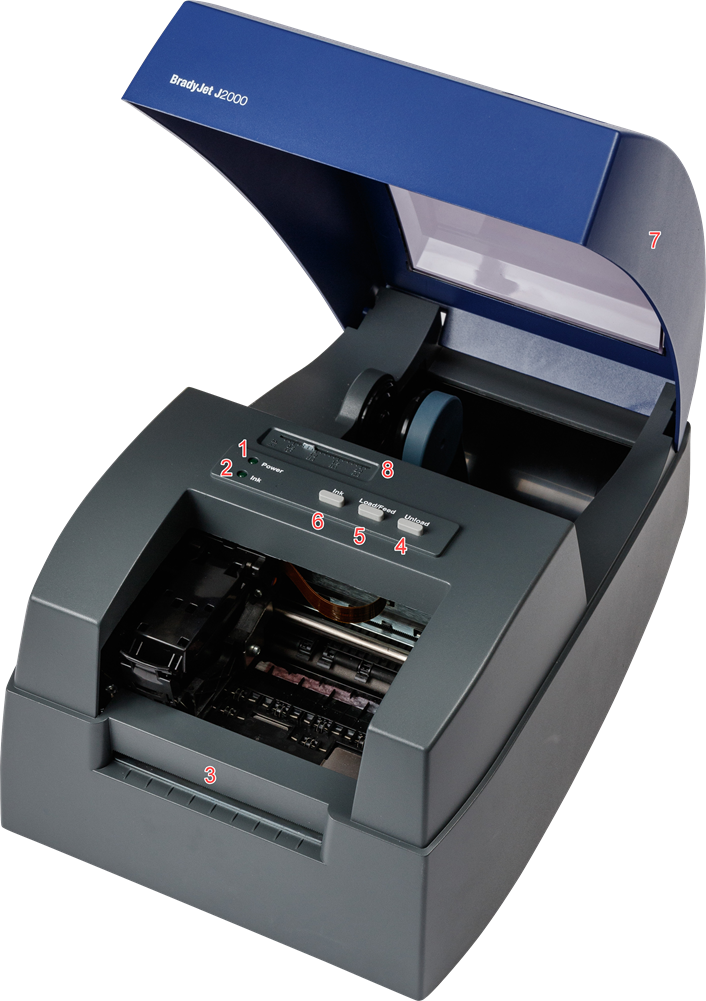

1. Power LED
2. Ink Low LED
3. Label Tear Bar
4. Unload Button
5. Load/Feed Button
6. Ink Button
7. Enclosure Cover
8. Label Supply TOF Sensor Bar

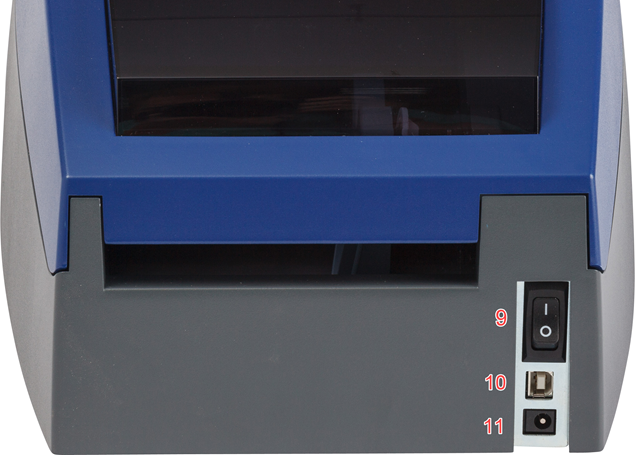

9. Power Switch
10. USB Port
11. Power Input Port
- Ink Low LED will illuminate when a cartridge has 10% or less ink remaining.
- Power LED indicates that the printer is on and ready to receive print jobs.
- Ink Button moves the carriage to the center to allow for loading of the ink cartridge. Once the cartridge is loaded, press the ink button again.
- Load/Feed Button used to load label supply or form feed the label supply through the printer.
- Unload Button will unload the installed label supply by reversing it through the printer.
- Label Tear Bar is a serrated edge for removing finished labels from the printer.
