How to Load a Standalone Application to the BBP11 or BBP12 Internal Memory

« Go Back

Content


Article Number000008154
TitleHow to Load a Standalone Application to the BBP11 or BBP12 Internal Memory
Body

1. Open the Diagnostic Tool that comes on the BBP11 Product CD. The file name is DiagTool.exe and can be found in the DiagTool folder. *DiagTool.exe can also be saved to your PC for easier future access.

User-added image

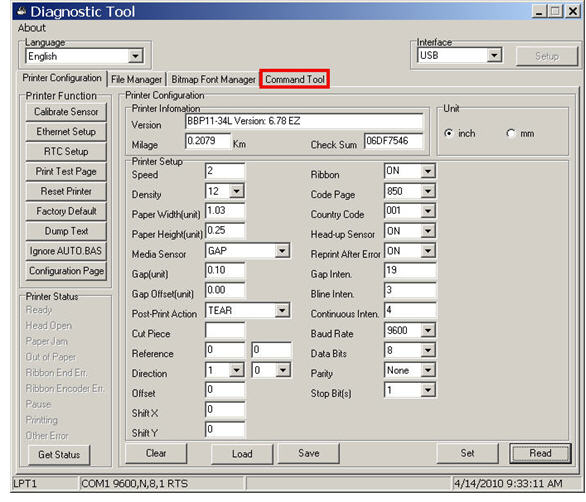

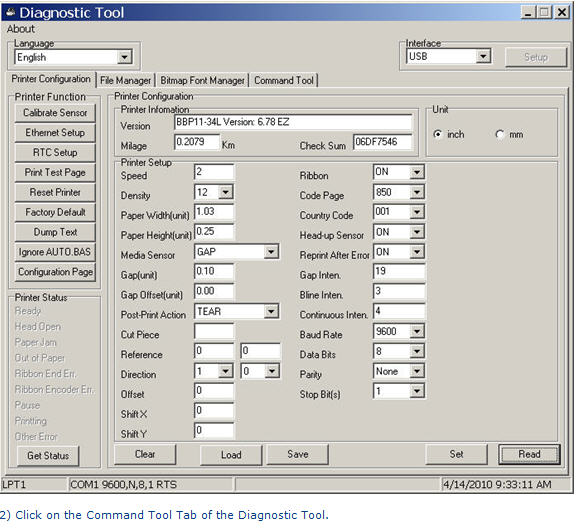

2. Click on the Command Tool Tab of the Diagnostic Tool.
User-added image

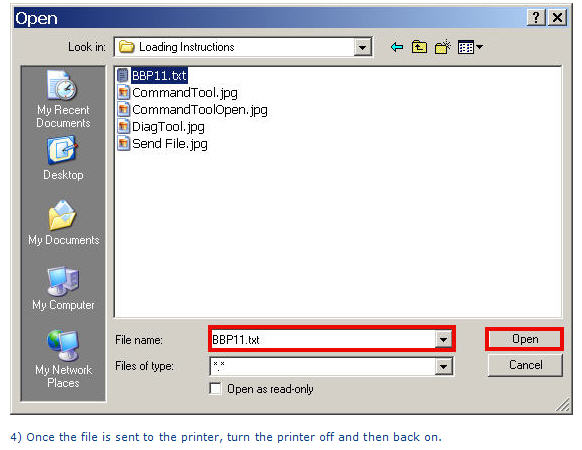

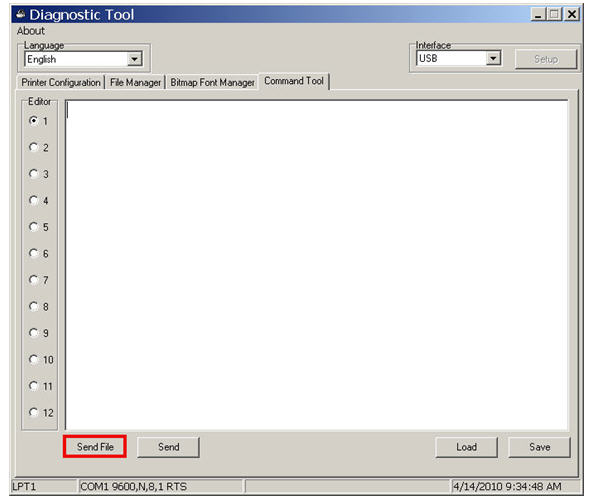

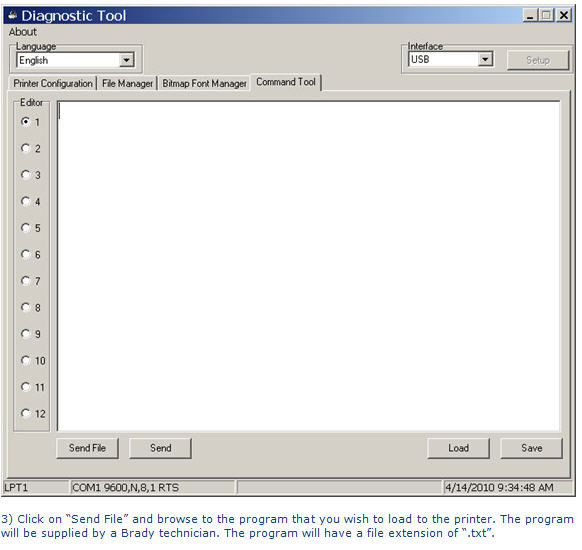

3. Click on “Send File” and browse to the program that you wish to load to the printer. The program will be supplied by a Brady technician. The program will have a file extension of “.txt”.
User-added image

User-added image
4. Once the file is sent to the printer, turn the printer off and then back on.
User-added image
