i5100 Firmware Upgrade Instructions
- Download the firmware from BradyID.com.

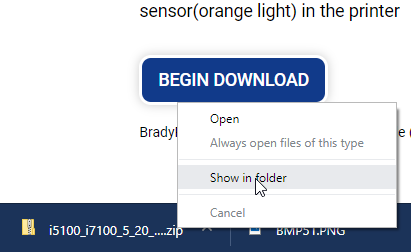

- Click Begin Download.

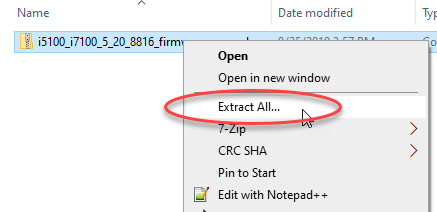

- Right-click the folder and click Extract All.

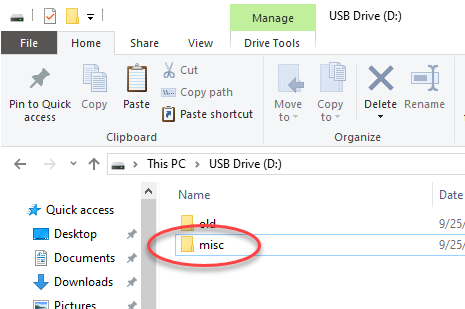

- On your USB Drive or SD card, create a folder in the root named misc.

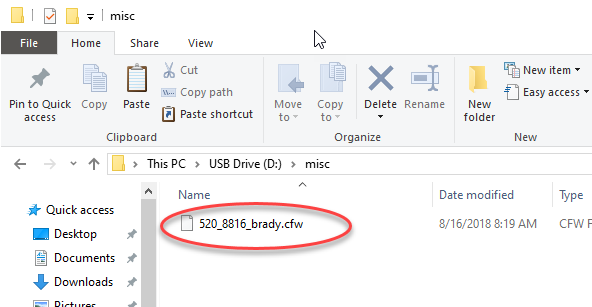

- Copy the brady.cfw file into the misc folder on your USB or SD card.

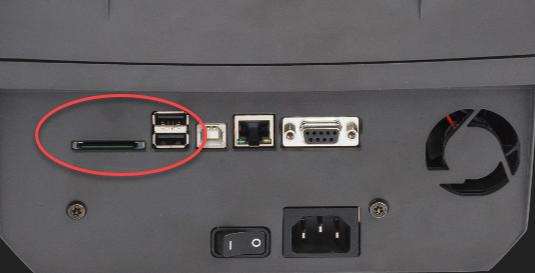

- Insert the USB Drive or SD card into the back of the printer.

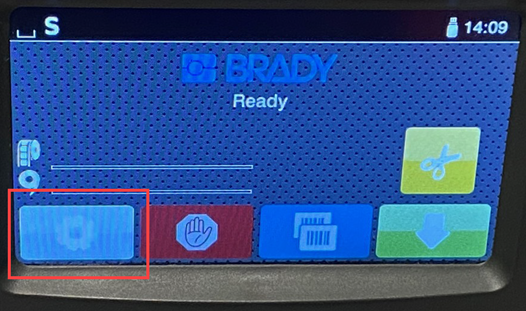

- On the printer screen tap the gear icon.

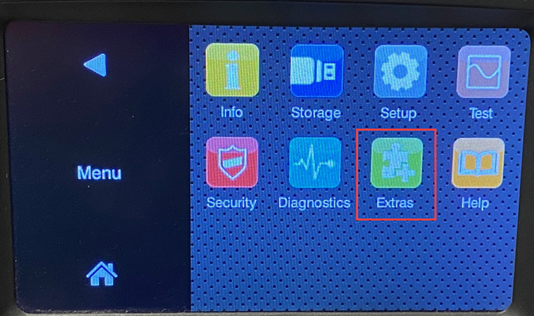

- Tap Extras.

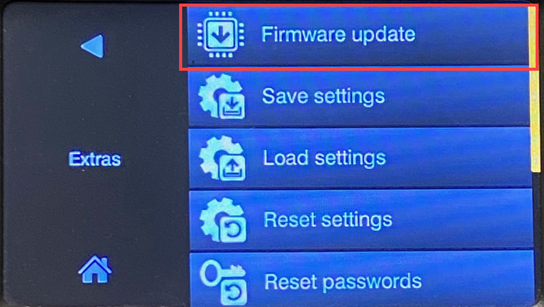

- Tap Firmware update.
.

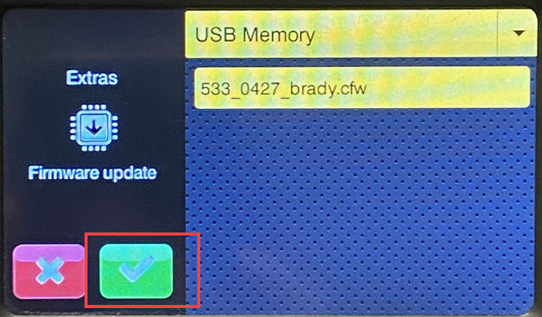

- Select the file and click on green checkmark.

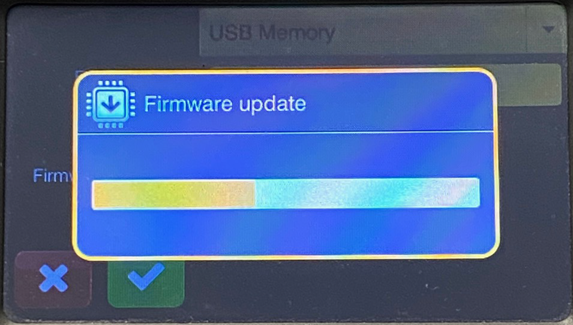

- The firmware will then be upgraded. Printer will restart after upgrade is complete.
IMPORTANT: Due to changes from 5.08 to 5.20 the printer will need to be re-calibrated. Future firmware updates will not need this calibration done. If you are already on 5.14 you should not need to do the calibration. To Calibrate the printer: i5100 - Calibrate label sensor.
The printer will continue to try and update the firmware if you do not remove the USB once the upgrade is complete.
