Using Continuous Material in the PR Series Printer
Sensor settings can be changed in the PR Series display menu. The driver sensor setting must also be changed, as the driver settings will override local settings of the printer.
Note: In addition to the steps below, position the sliding sensor over the label material
1. Change Sensor on the Display
Note: The cutter must be installed in order for the Continuous option to appear. If you do not have the auto cutter accessory, move to step 2.
On the printer display, press "Menu"
Using the arrow pad, navigate to Setup
Navigate to Print Param
Navigate to Sensor and press the center button
Toggle the left and right arrows to select Continuous
Press the center button to lock in your selection
2. Change Sensor Setting in the Driver
Navigate to Devices and Printers on your Windows desktop

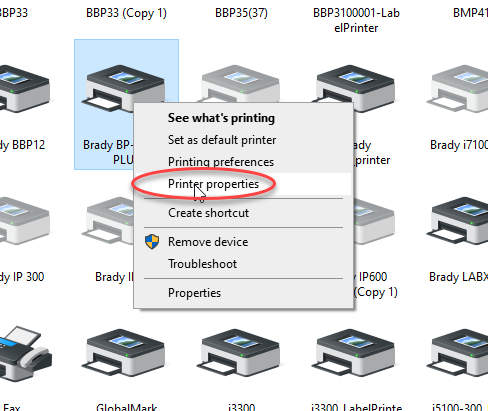

Right click the driver and choose Printer Properties

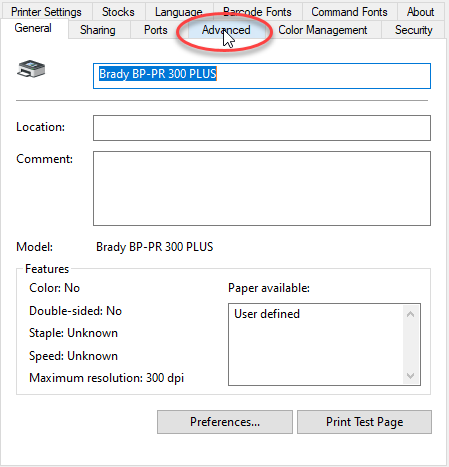

Click the Advanced tab

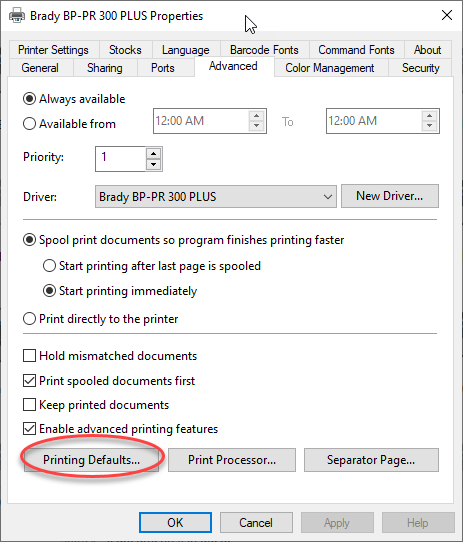

Click Printing Defaults

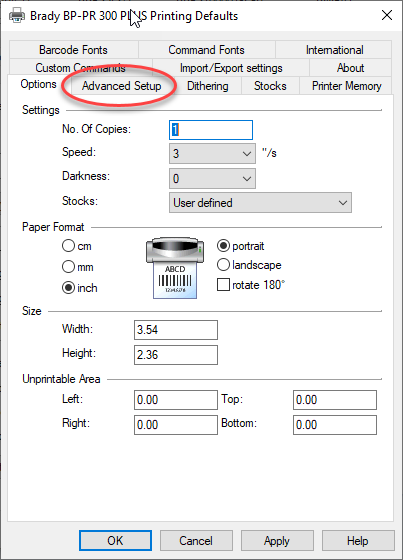

Click Advanced Setup

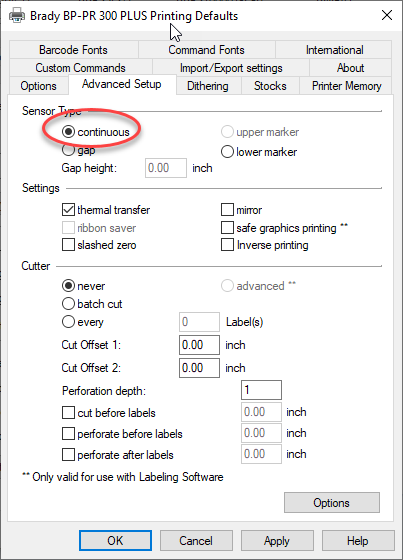

From the Sensor Type selection, choose the Continuous radio button
Click Apply, then OK and exit the Printer Properties menu
