How to Network the BBP31 Using the Printer Driver

The BBP31 has an external Brady Network Card (BNC) requiring configuration via the Brady Network Card Configuration Utility. The BNC utility is installed as part of the printer driver installation. Use this networking method when printing from MarkWare (discontinued) or 3rd party software.

• Note: If you are using Brady Workstation, you do not need to install the driver: How to Network the BBP31 Printer in Brady Workstation

Configure BNC Networking in the Driver Installation Wizard

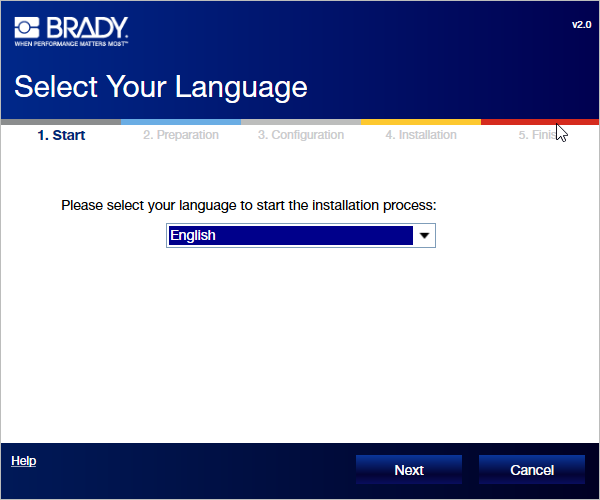

1. Select your language and click Next

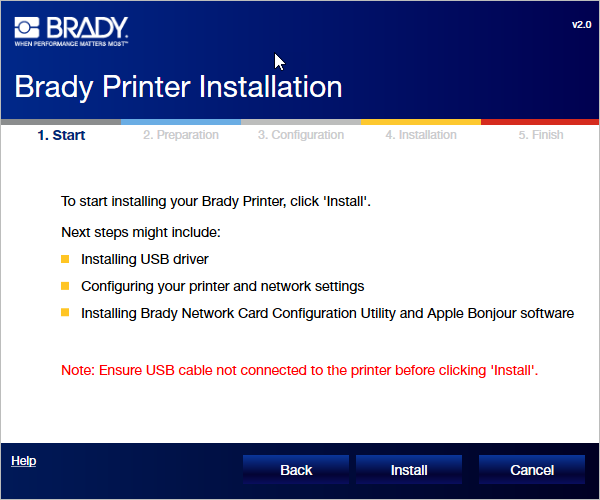

2. Click Install

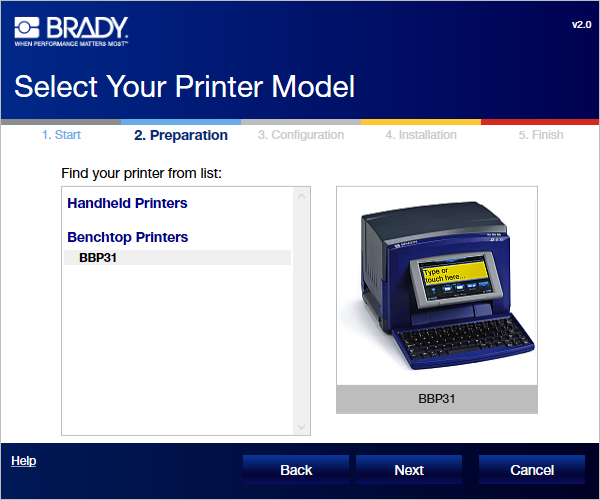

3. Select your printer model and click Next

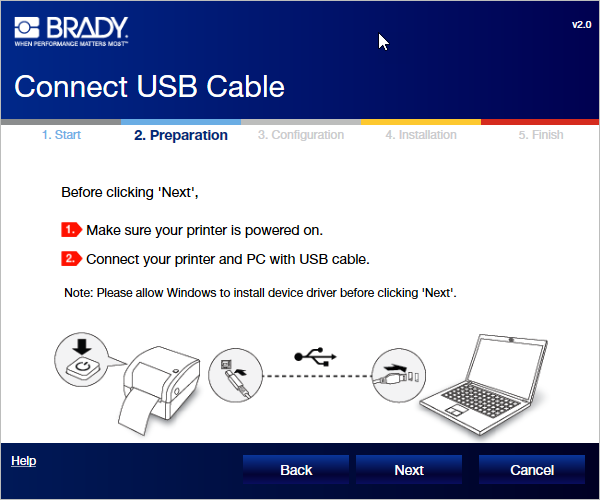

4. Connect the USB cable and click Next

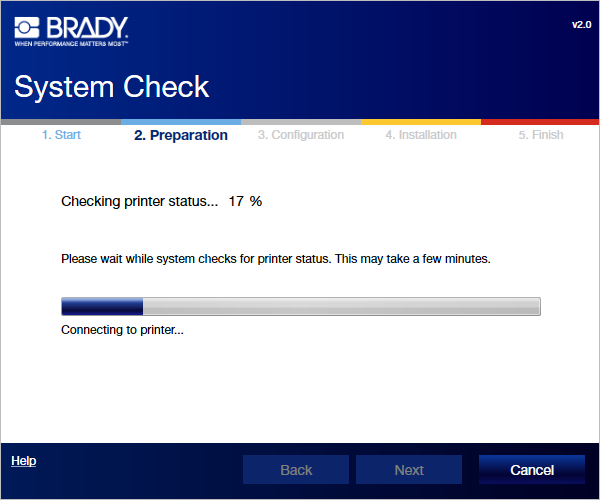

5. Wait for the printer status check to complete, then hit Next

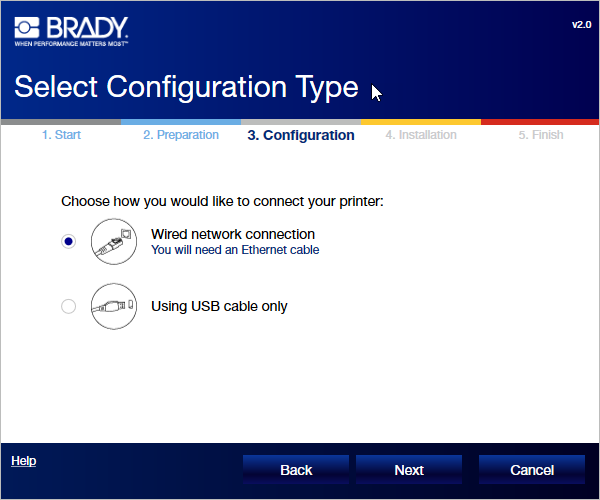

6. Select connection type, hit Next

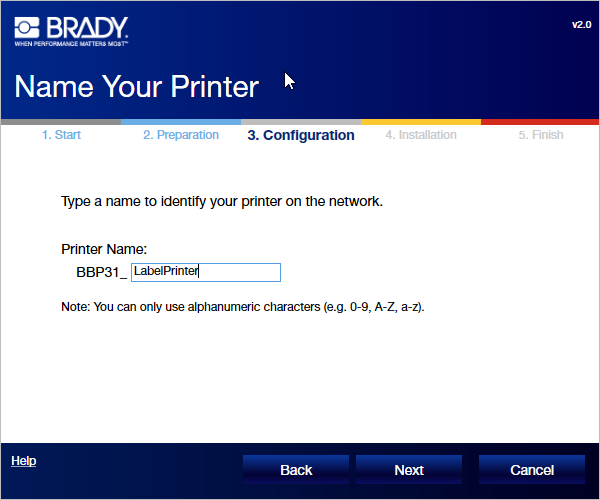

7. Name your printer, then hit Next

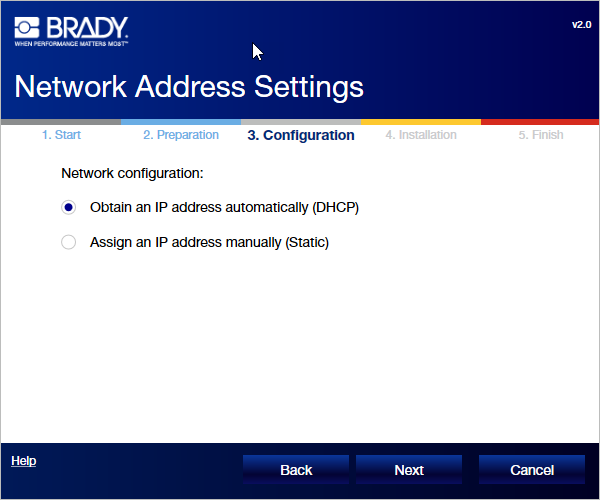

8. Choose to network via DHCP or provide a static IP and click Next

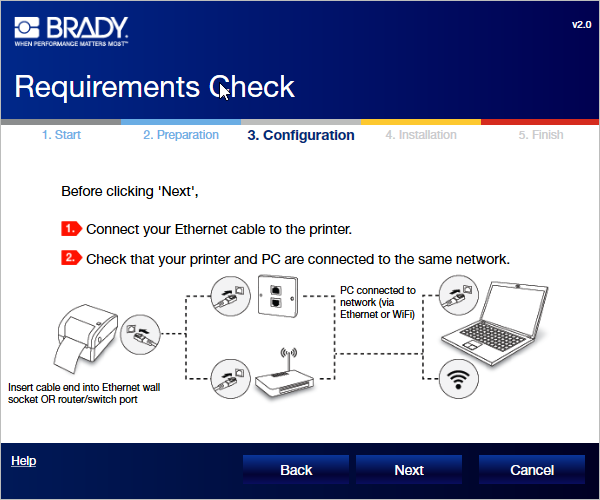

9. Connect the printer to your Network, click Next

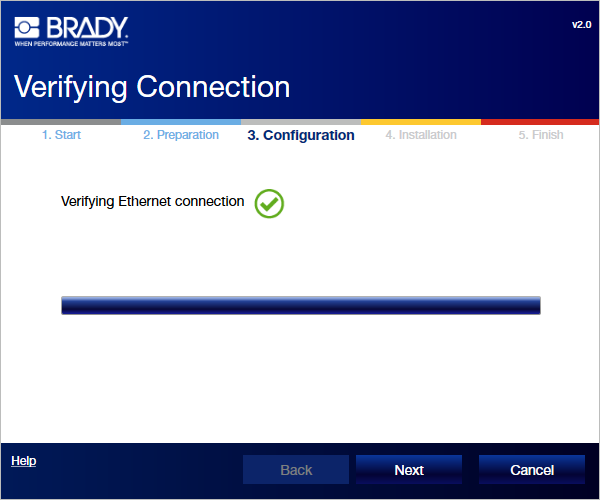

10. Wait for verification to complete, then hit Next

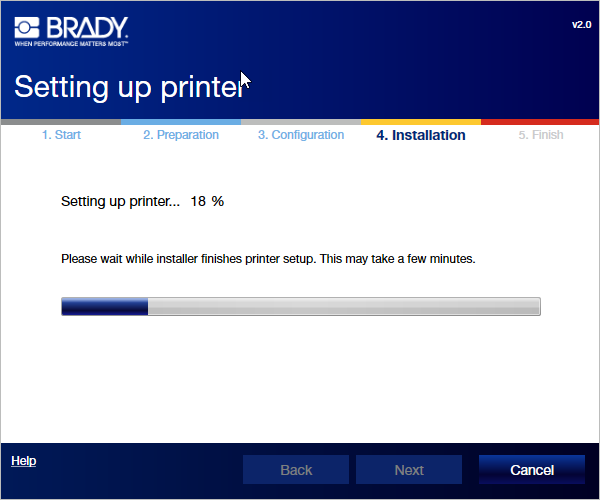

11. Wait for printer setup to complete, then hit Next

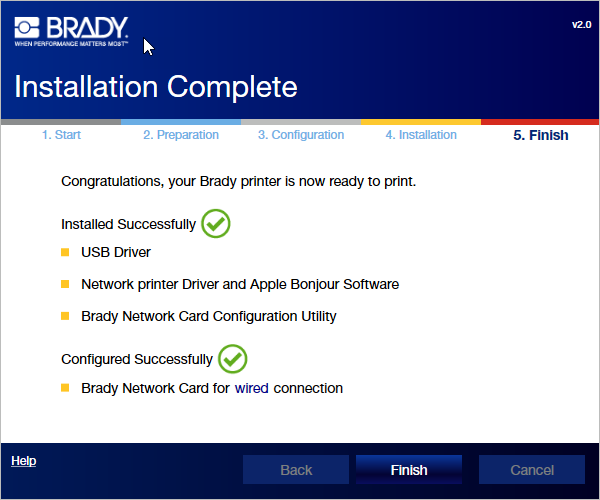

12. Click Finish
