Networking the A6500

Network settings must be configured from the touch screen menu for first-time setup and can only be done via an Ethernet (TCP/IP) connection.

Note: A6500 cannot connect via WiFi.

  1. Turn on the printer.

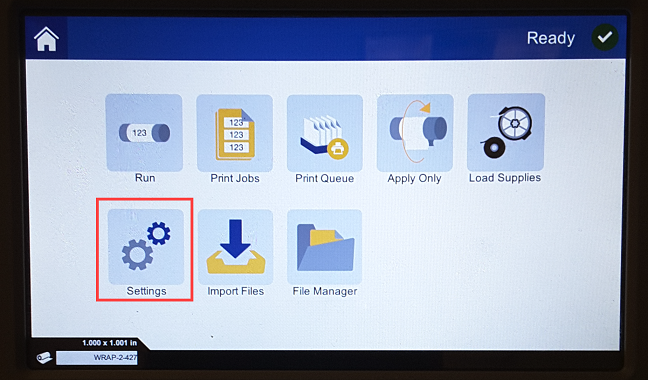

  1. Select the Gear icon on the printer touch screen for Settings.

A6500 Home Screen_Resized.png

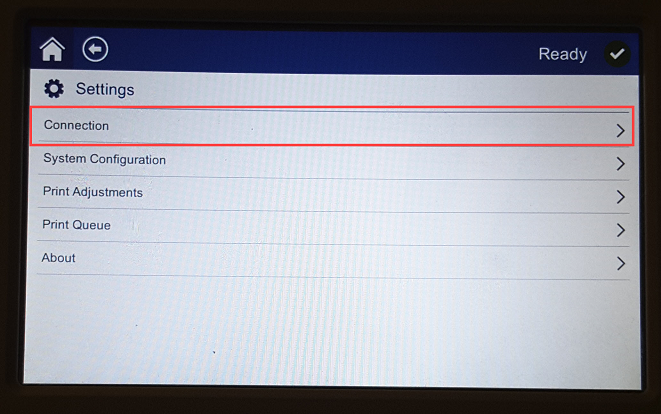

  1. Select Connection.

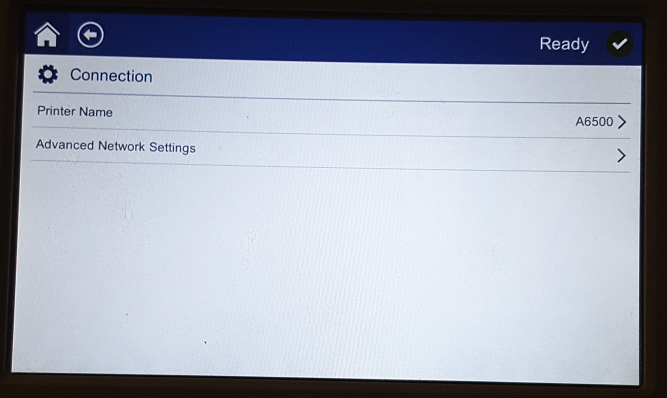

  1. Select Advanced Network Settings.

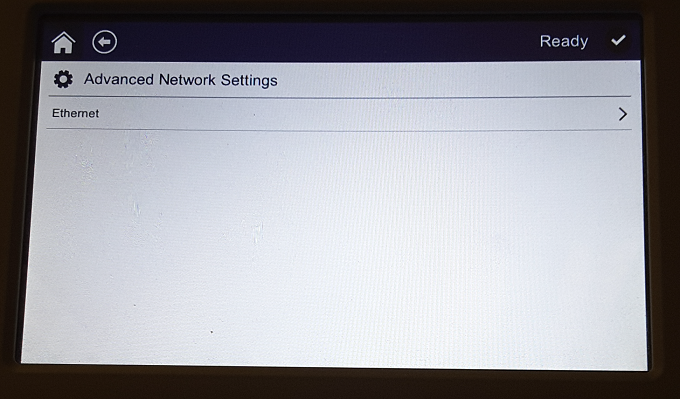

    1. Select Ethernet.

    Advanced Network Settings_Resized.png

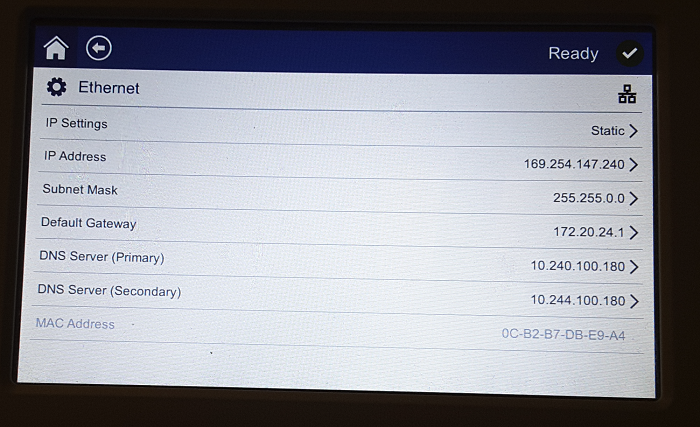

    1. Select IP Settings.

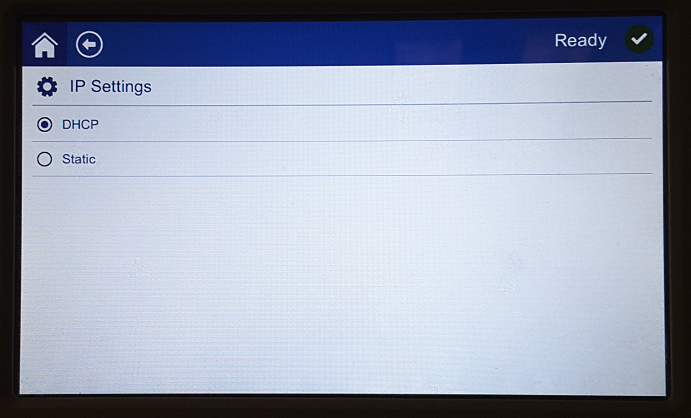

    1. Choose DHCP to automatically assign IP address information.

    IP Settings DHCP_Resized.png


    Configure a Static IP on the A6500

    Note: We observed an issue where an A6500 on a specific firmware version would not retain the configured static IP. See this article for more information: A6500 Static IP Address Does Not Save or Keeps Changing.

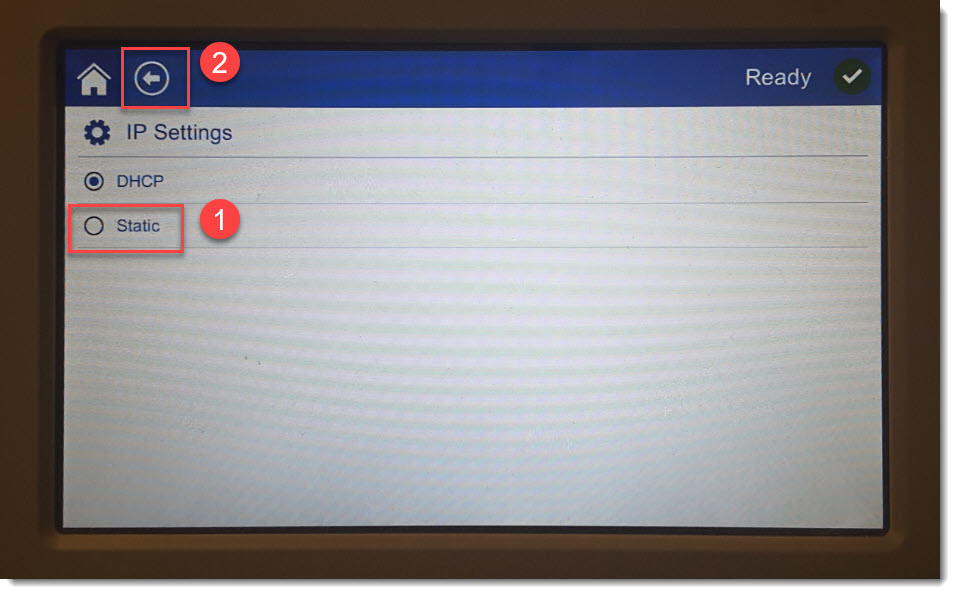

    1. Select the radio button for Static, select the back arrow to return to the Network settings screen.
    User-added image

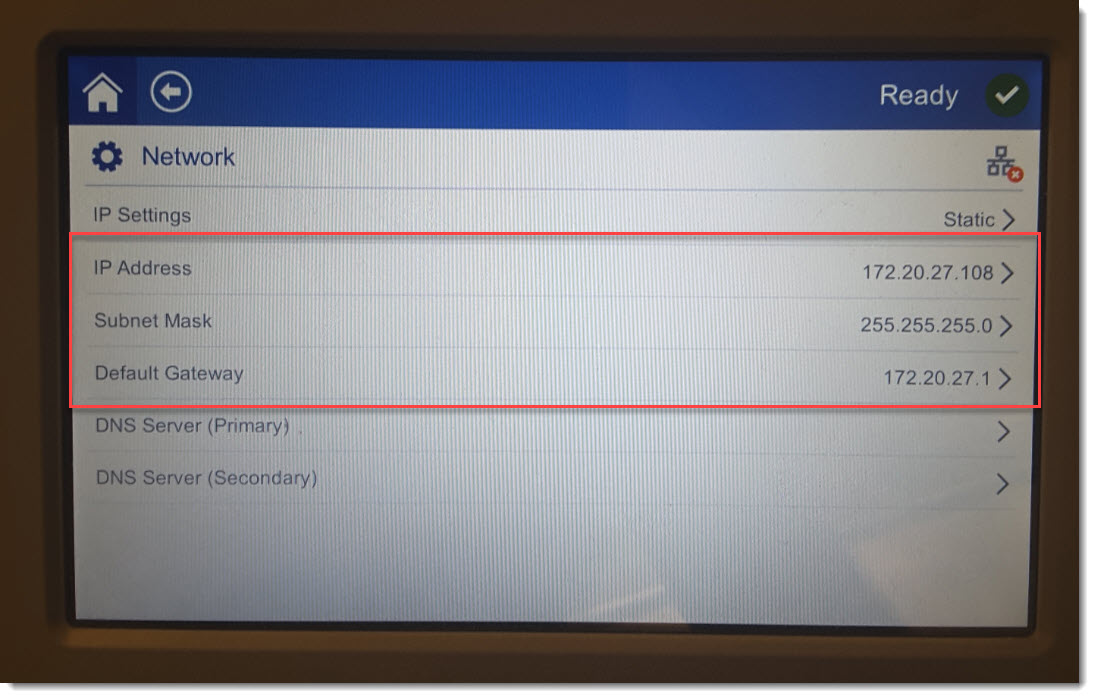

    1. Enter network settings as required by your network:
    • IP Address
    • Subnet Mask
    • Default Gateway
    • Primary & Secondary DNS servers

    User-added image


    Next Steps

    Additional configuration is be required from the PC side.
