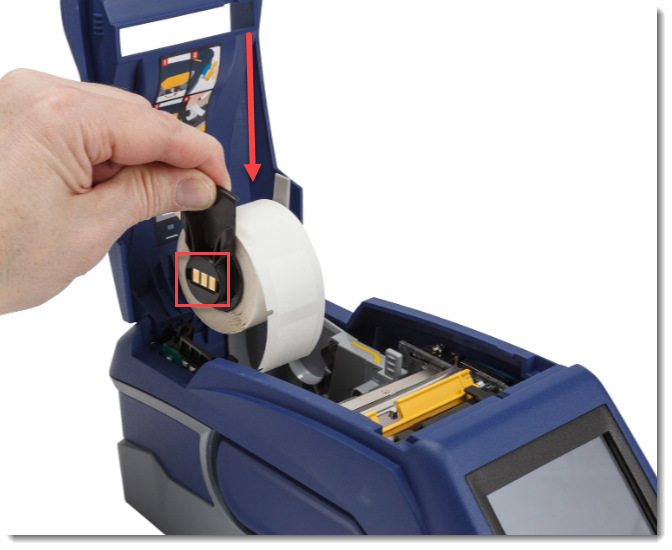

2. With labels coming off the top of the spool, grasp the smart cell handle and insert the labels straight into the smart cell reader compartment, gently pushing until it clicks into place.

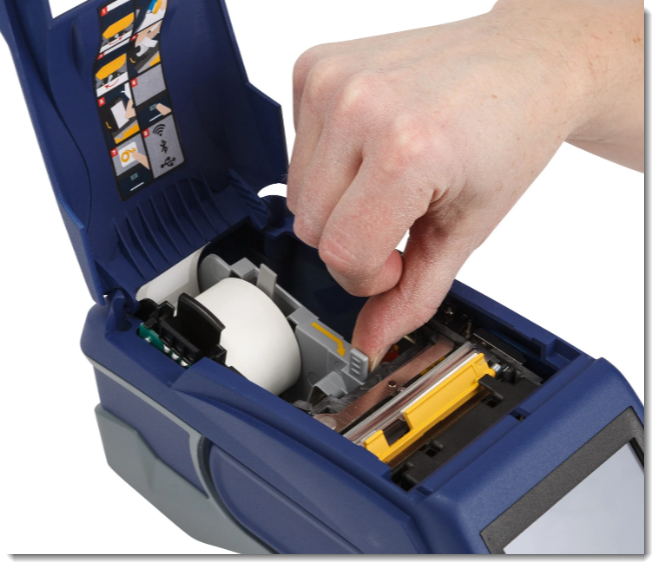

3. If using anything but a 2-inch width media, slide the media guide to the left until it fits snugly up against the media roll and clicks into place.

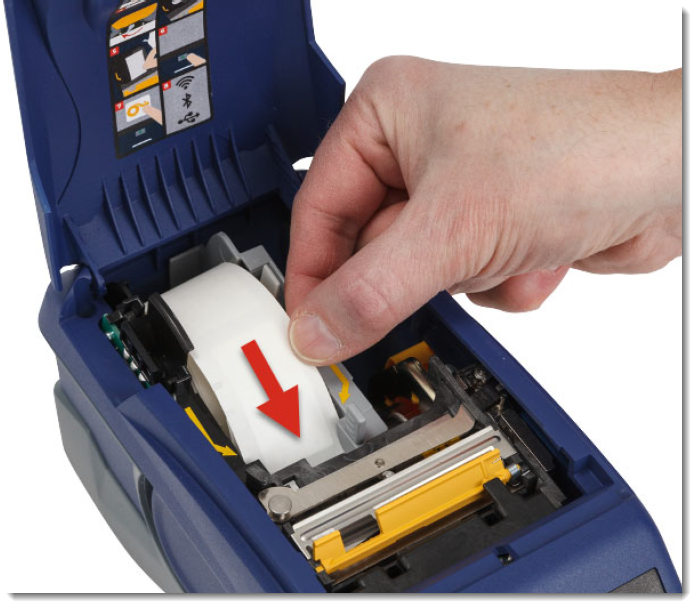

4. Feed the leading edge of the media roll through the guide slots until it stops.
Note: Make sure the printhead is engaged by flipping the printhead lock lever forward (to the left) before inserting media into guides.

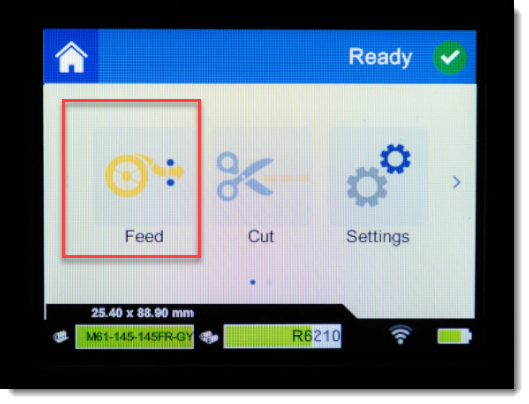

5. With the Power on, press Feed button once to feed media under printhead.

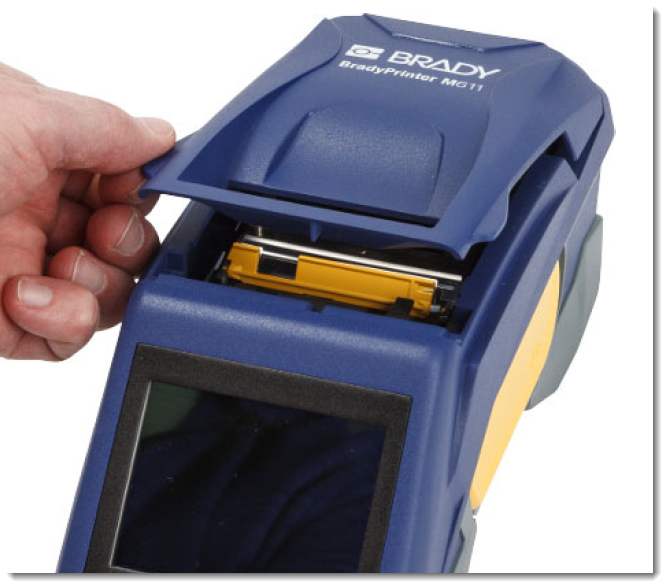

6. Close the cover by pushing down on it until it snaps into place.
Loading New Ribbon Cartridges into the M611

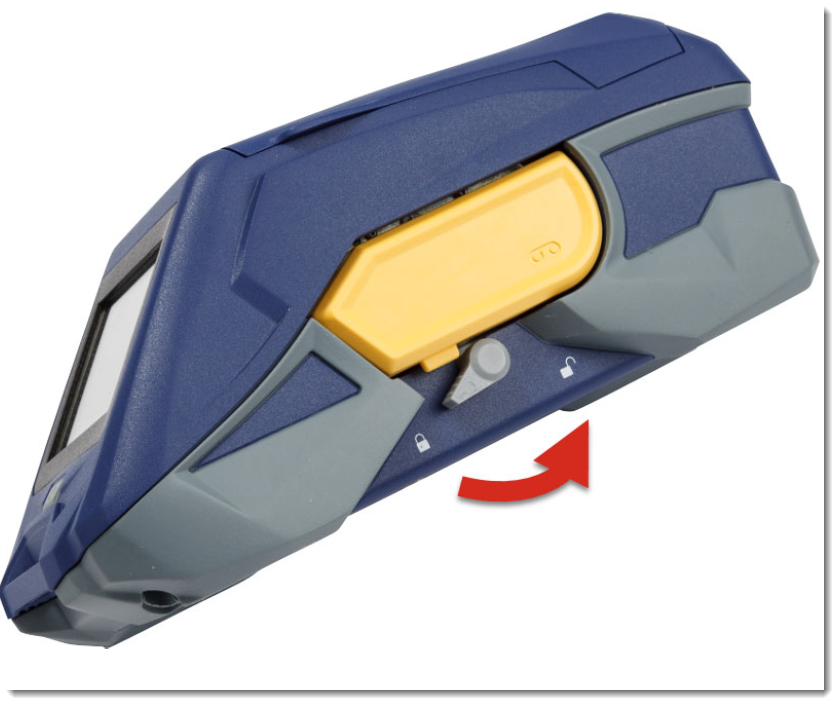

1. Turn the lock lever toward the back of the printer to unlock it.

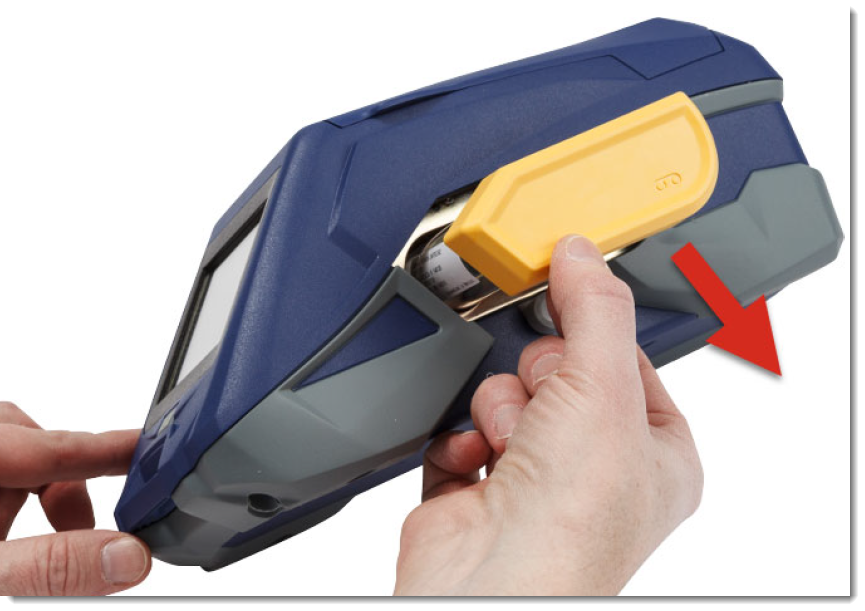

2. Grasp the ribbon and gently slide out of printer.

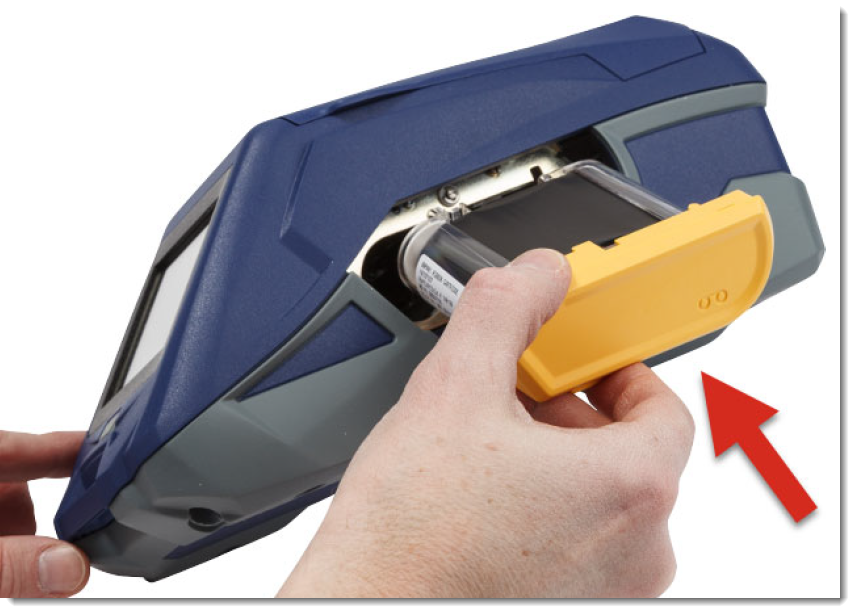

3. Insert the new ribbon.

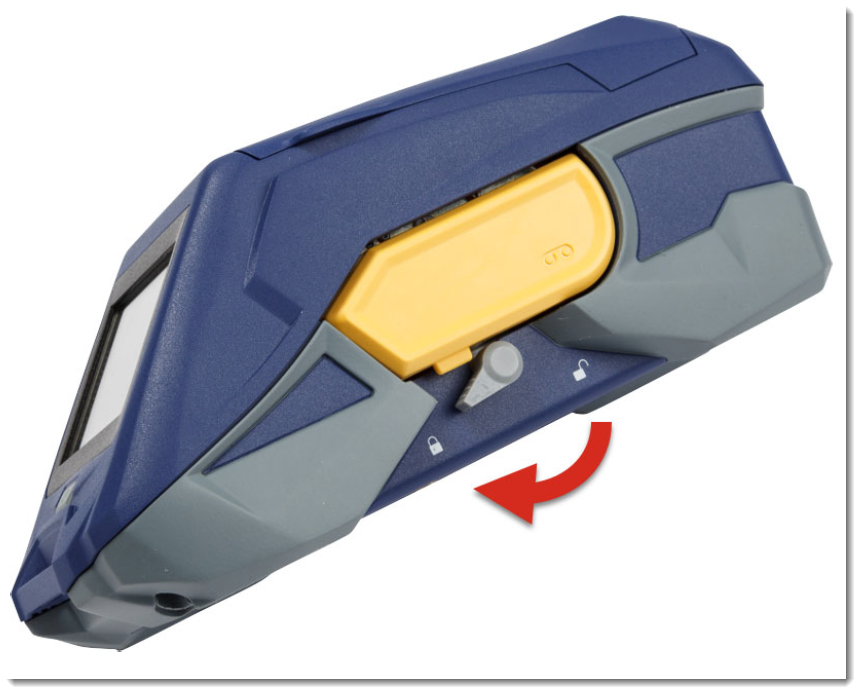

4. Turn the lock lever toward the front of the printer to lock it.
