How to Load Labels into the BMP51

Loading the Cartridge

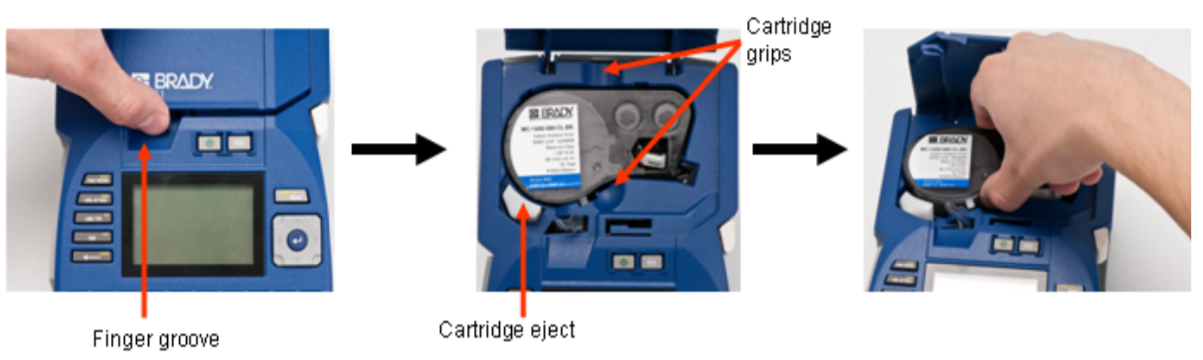

1. Place your thumb in the finger groove and push up on the cover lip to open the printer cover.

2. With the cartridge label facing up, drop the cartridge into the cartridge well, pushing gently until it snaps into place. Close the cover by pushing down on it until it snaps into place.

• Note: If using the shorter cartridge, hold the cartridge by the fin when dropping into place.

Removing the Cartridge

1. Place your thumb in the finger groove and push up on the cover lip to open the printer cover.

2. Push down on the cartridge eject button.

3. Placing your fingers in the cartridge grip areas (small depressions on the side of the cartridge well) grasp the cartridge and pull it out.

• Note: If using the shorter cartridge, grab the cartridge fin and pull up
