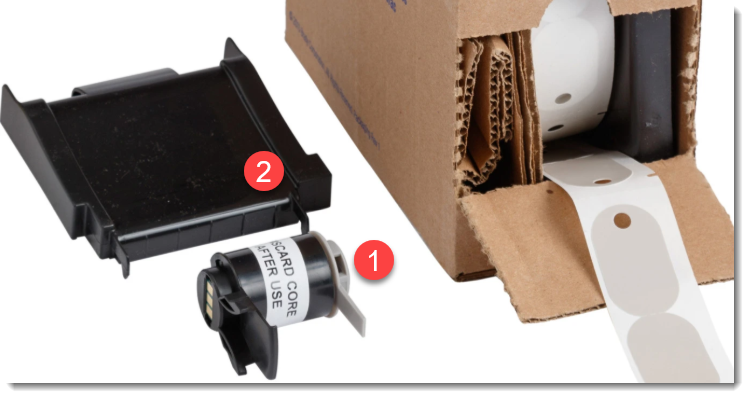

Remove the label spool and the label feed ramp from the box.

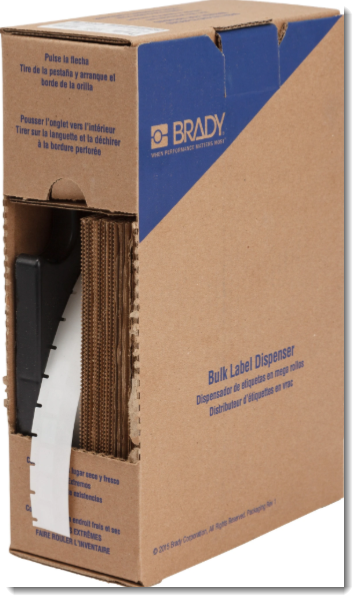

On the bulk label box, push tabs A and C in, then pull the perforated flap down and tear off.

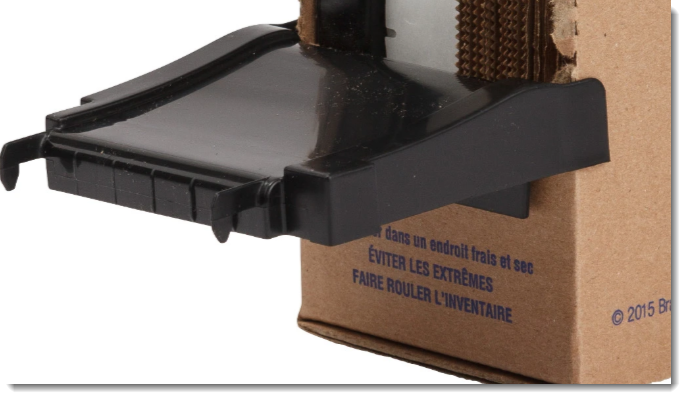

Attach the label feed ramp to the bottom of the perforation, with the ramp arms on the outside of the box.

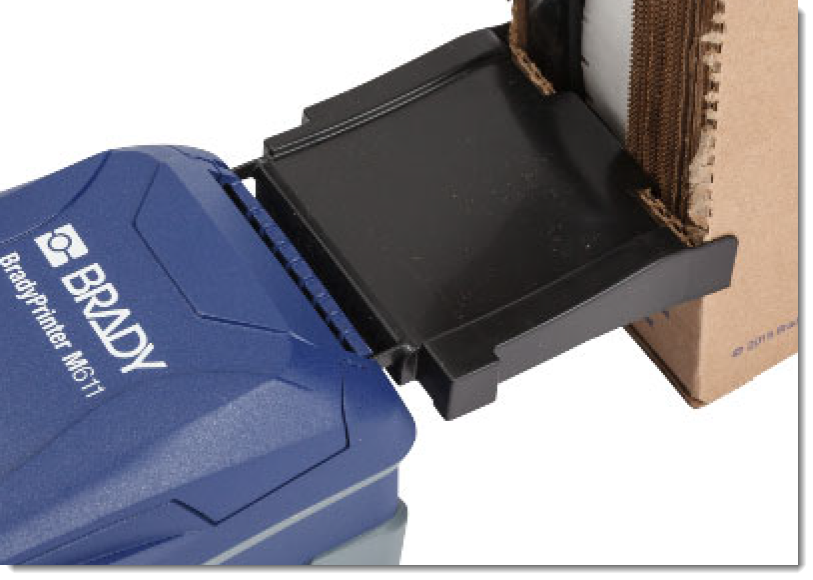

Attach the ramp hooks to the outside of the bulk label feed path on the printer.

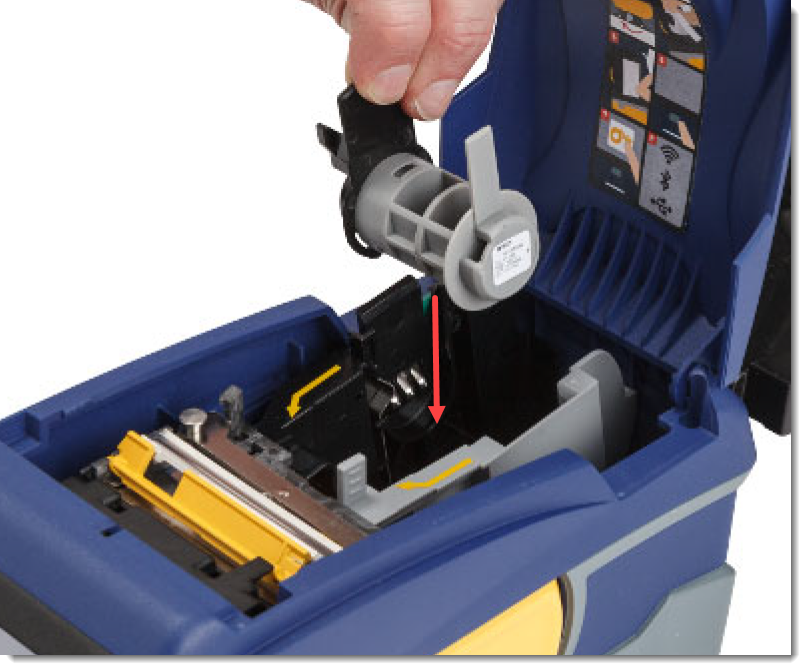

Insert the label spool into the printer so that the smart cell aligns with the reader in the label well. Adjust the label guide as needed.
Important: Do not swap cores between boxes. The core contains a chip that is programmed with the number of labels. To ensure our labels have enough material for consistent application, we've implemented a 10% overage in the programming. This may occasionally result in a slight excess on the label roll, but it guarantees a smooth labeling experience for our customers.

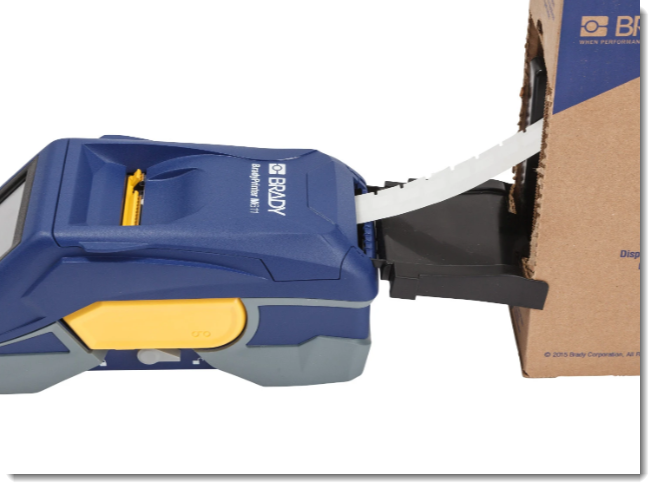

Pull the loose end of the bulk labels out of the box and thread over the tray and into the bulk label feed path on the printer.

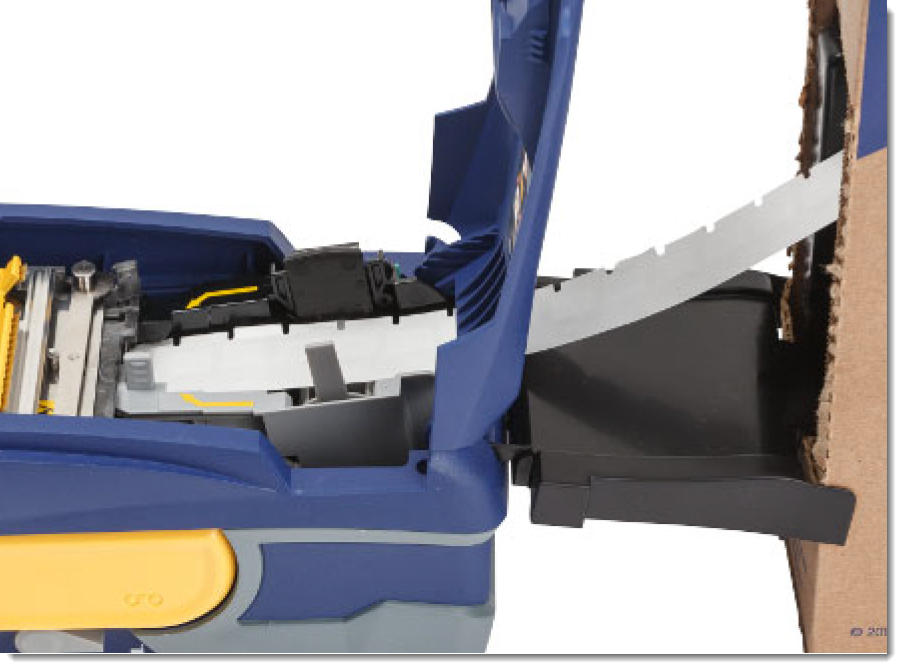

Continue to feed the leading edge of the label roll over the label spool and through the guide slots until it catches.

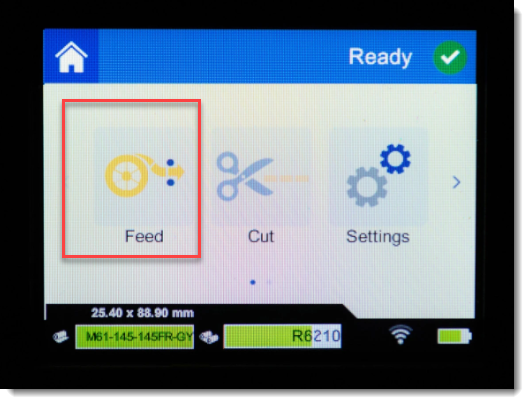

Tap Feed on the touch screen to advance the label supply.
