BMP51 - Increase or Decrease LCD Screen Contrast

Printable View
« Go Back

Content


Article Number000011915
TitleBMP51 - Increase or Decrease LCD Screen Contrast
Body
Adjust the Screen Brightness on the BMP51


This information can also be found on Page 10 of the BMP51 quick start guide: BMP51 - User Guide / Owners Manual / Quick Start Guide.

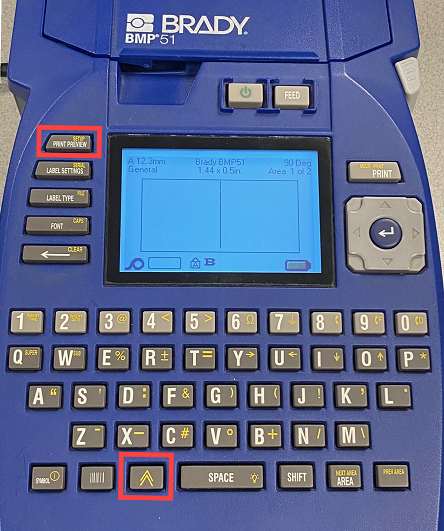

  1. Press the function button and Print Preview / Setup button.
Function Setup

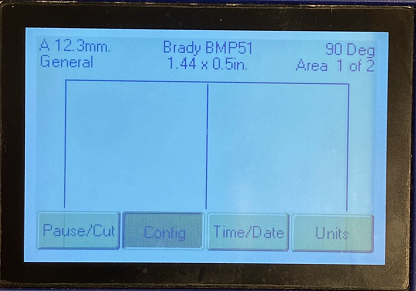

  1. Use the navigational arrows to navigate to Config and press Enter.
Config           OK

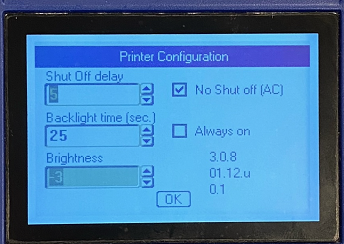

  1. Use the navigational arrows to navigate to Brightness and press Enter.
 Brightness

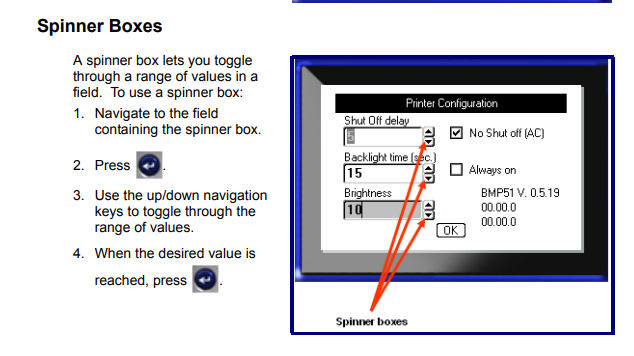

  1. Use the up or down arrow to adjust the screen brightness. Negative numbers are brighter than positive numbers.
  1. Once the brightness is adjusted, press Enter.

  1. Use the navigational arrows to navigate to OK and press Enter.
OK and Enter
