i7100 Peel Off Mode

Peel off mode is often required when using the Peel and Present or Vial Applicator accessories.

1. In the Windows 10 start menu, type "Control Panel" and hit enter.
2. Select "View Devices and Printers".

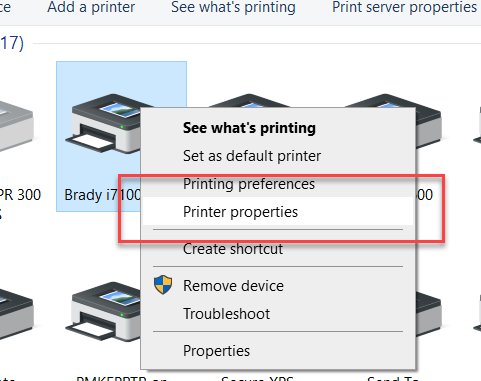

3. Right click the i7100 driver and choose "Printer Properties".

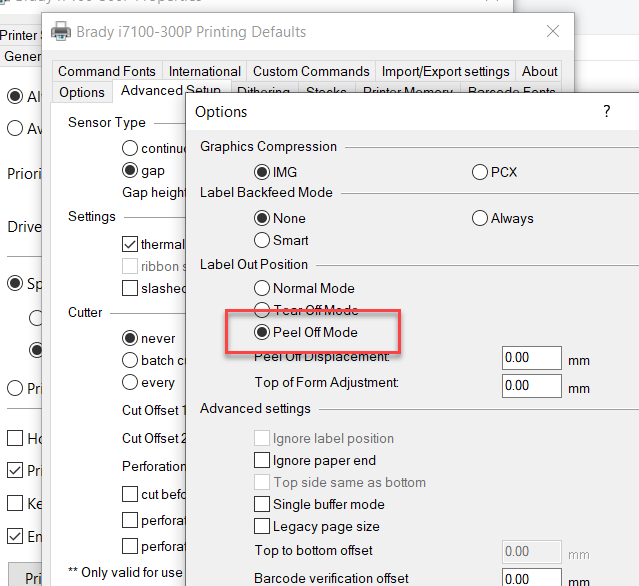

4. From the General tab, Click Preferences > Advanced Setup > Options > select "Peel Mode". Click Close and then Apply then OK.

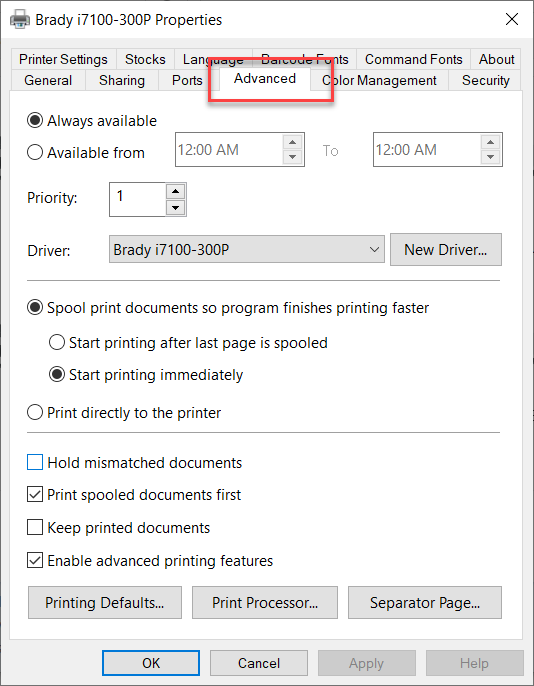

5. Click the Advanced tab.

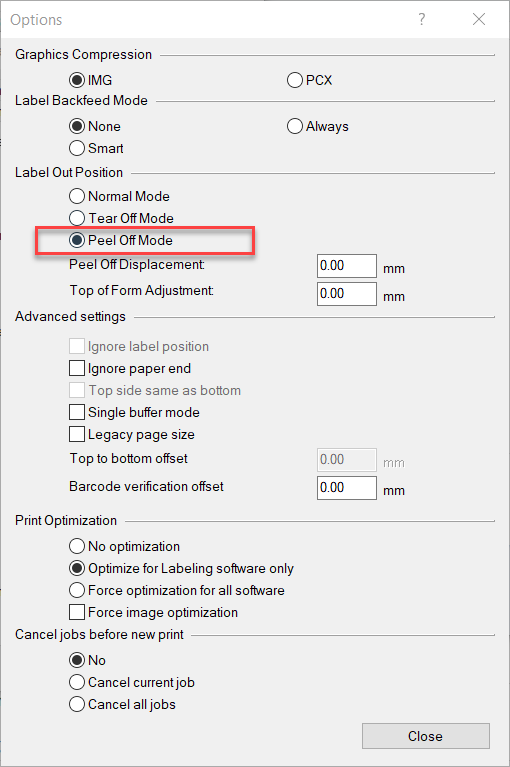

6. Click Printing Defaults > Advanced Setup > Options > and again select "Peel Off Mode". Then Close, Apply, OK.
