You can print labels in portrait or landscape orientation:
  • Portrait orients the label data elements lengthwise from top to bottom.
  • Landscape rotates the label data, printing lengthwise from left to right.

  1. Select Menu.
Menu

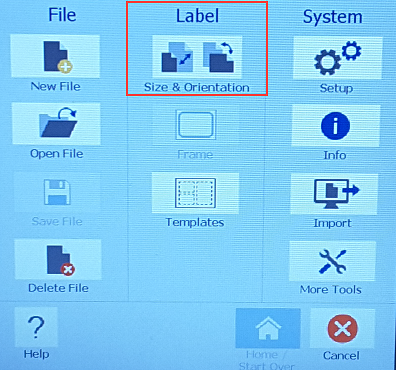

  1. Under Label, select Size & Orientation.

Size and Orientation_resized.png

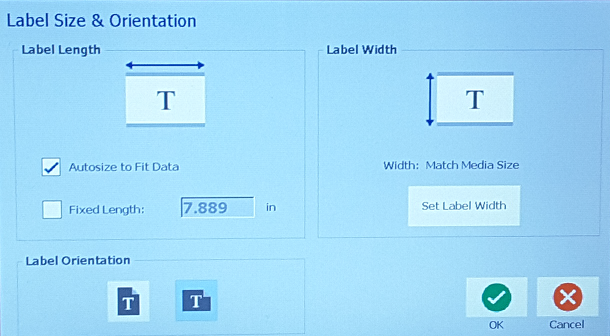

  1. Under Label orientation, select Portrait or Landscape to achieve the desired print orientation of your label.

Label Size and Orientation menu_Resized.png

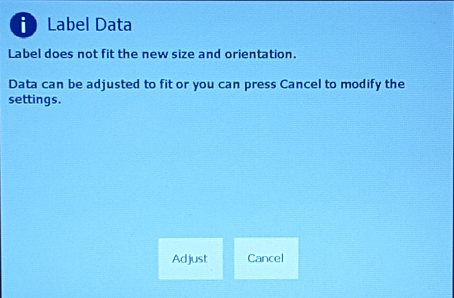

Note: If the current data will not fit on the selected length, you are prompted to have the system make the data fit, or cancel the change. If you choose to make the data fit, the objects are moved and/or resized so they fit on the label; however, the objects will not be rearranged into a new orientation.

Label Data_Resized.png


To make the data fit the orientation:

  1. Select Adjust.

  1. When ready, select OK.
