How to Add a Networked BMP51/53 in Brady Workstation

The Network Printers App

Add the BMP51 to additional PC's running Brady Workstation after configuring the network card. Network card configuration steps can be found in this article: Brady Workstation - Installing Brady Printers with an External Brady Network Card (BNC)

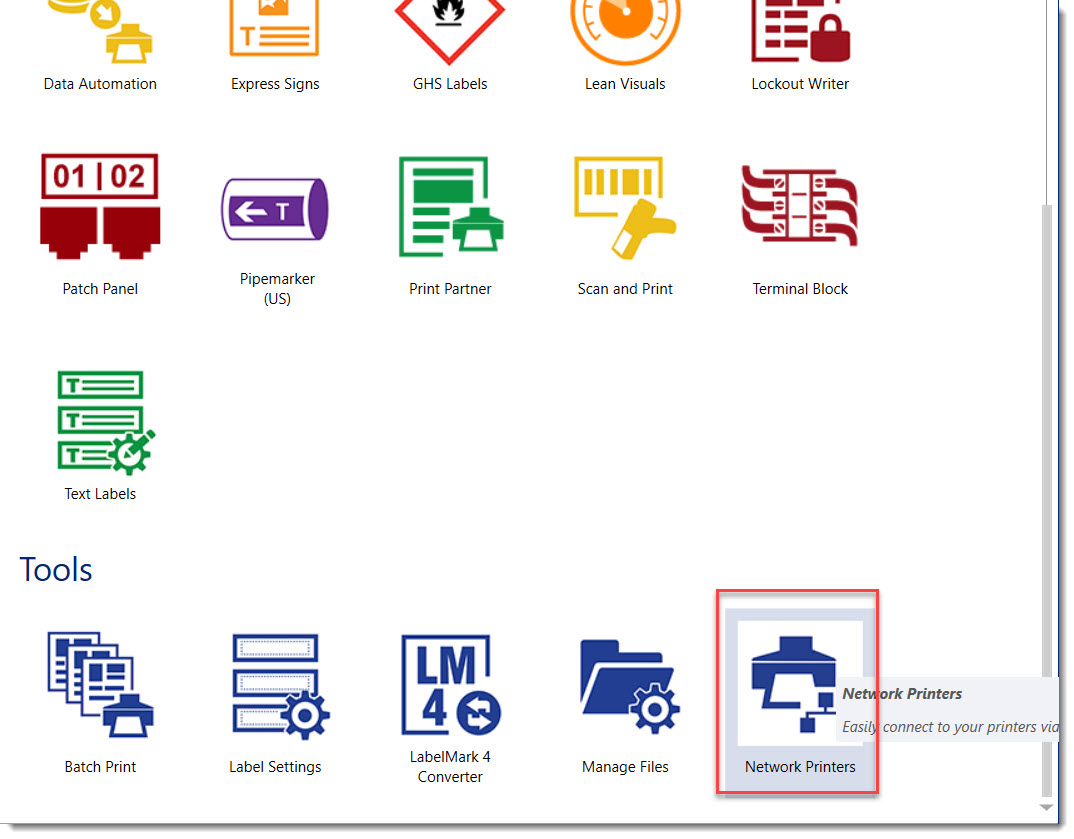

1. Launch Brady Workstation and select the Network Printers app.



2. Confirm the printer is detected.



Manually Add the BMP51 to the Network Printers App

Follow these steps if the printer does not automatically display after launching the app.

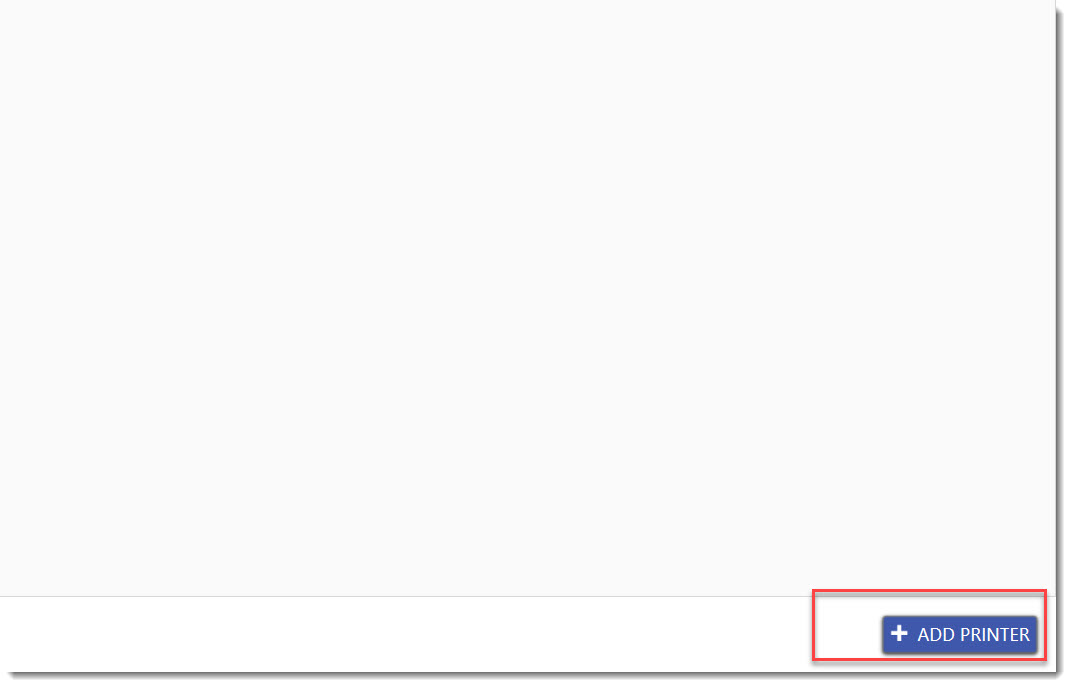

1. Click "Add Printer"

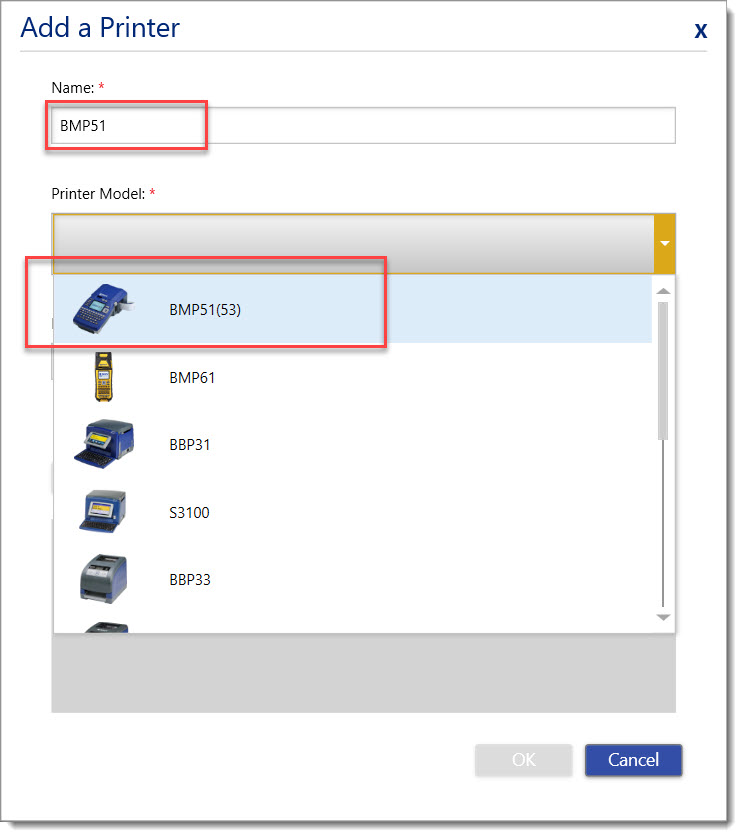

2. Enter a printer name and select the BMP51 from the drop down menu.

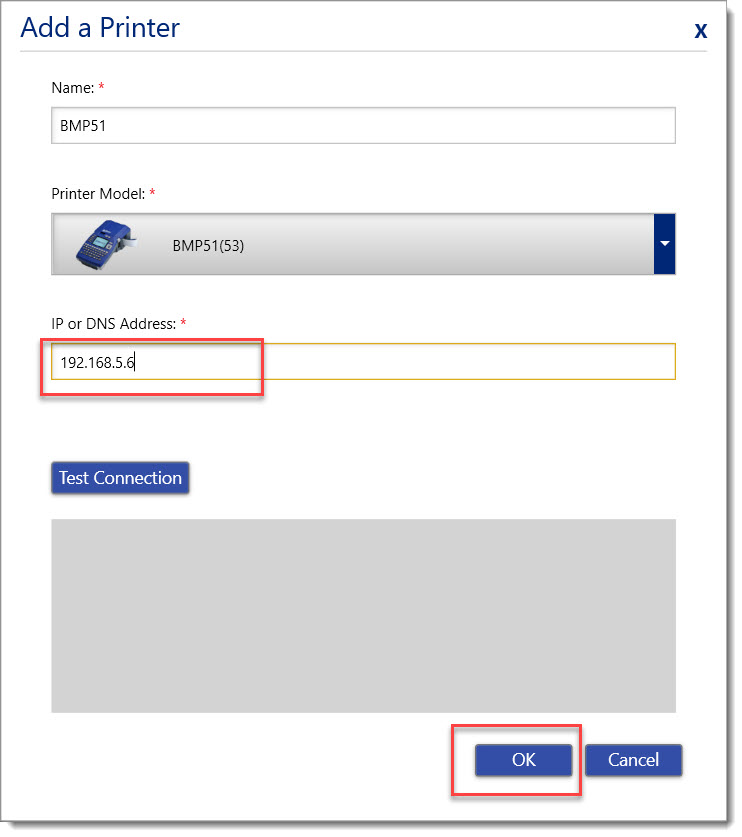

3. Enter the IP address of the printer, then click OK.
