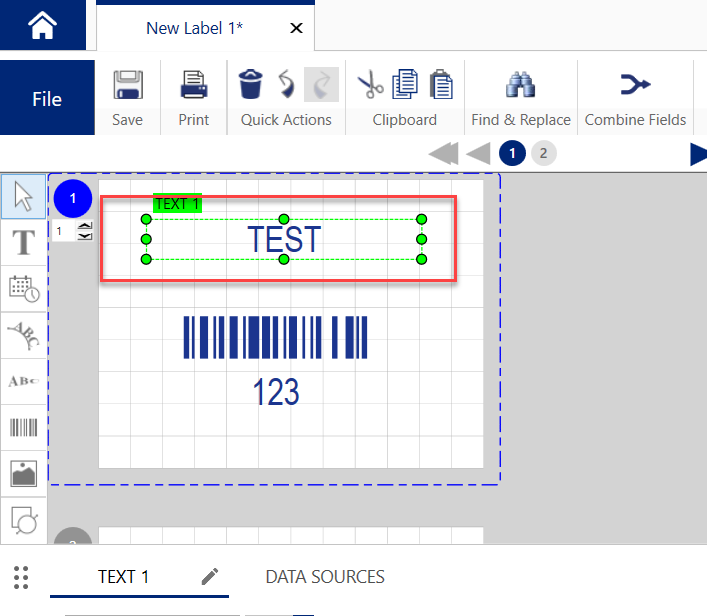

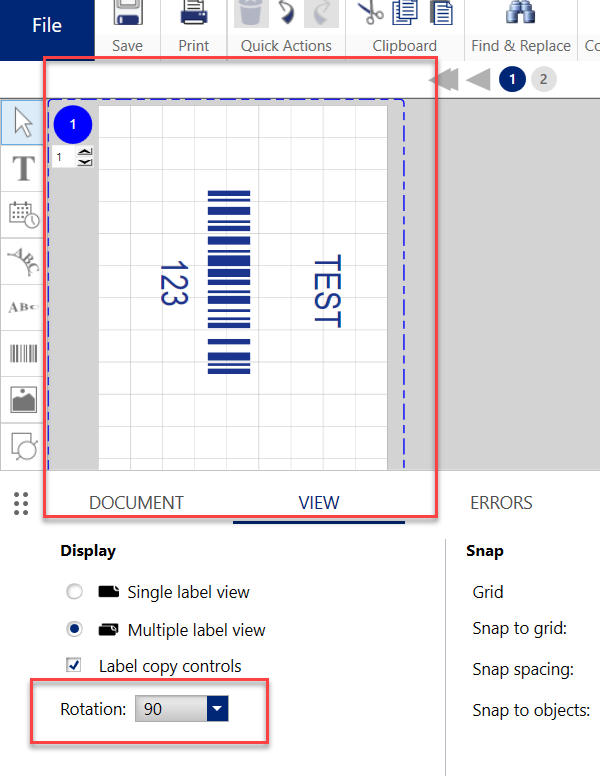

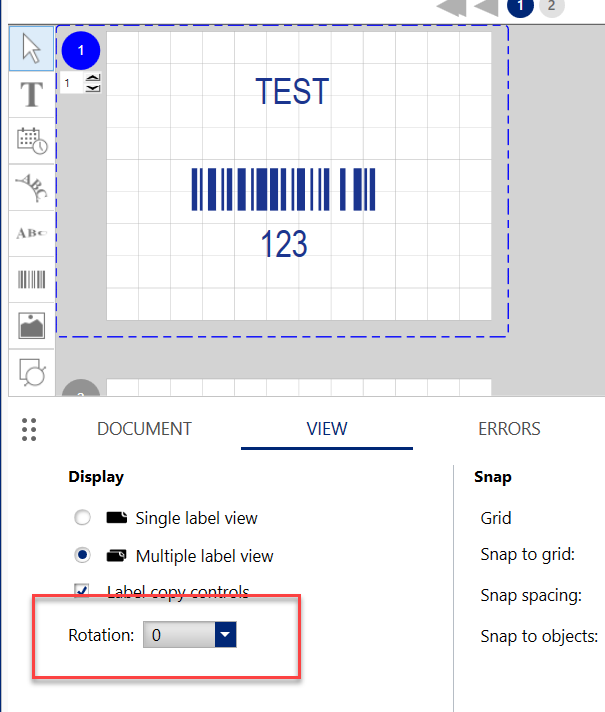

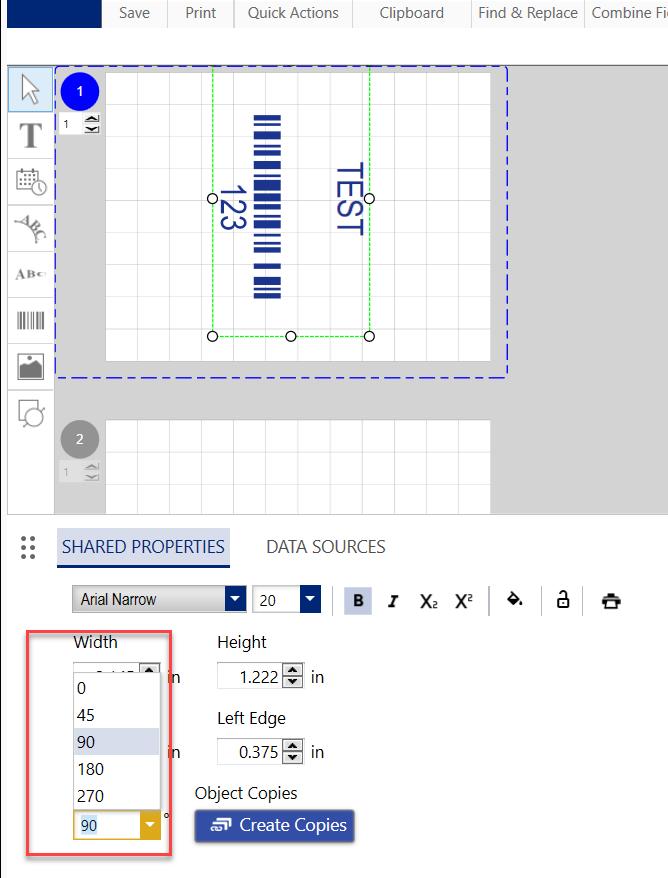

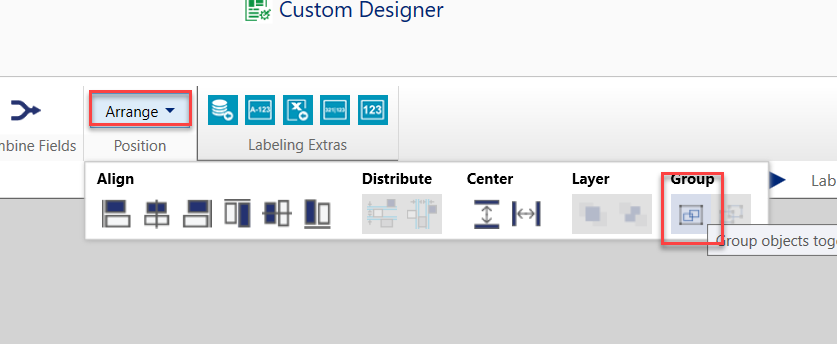

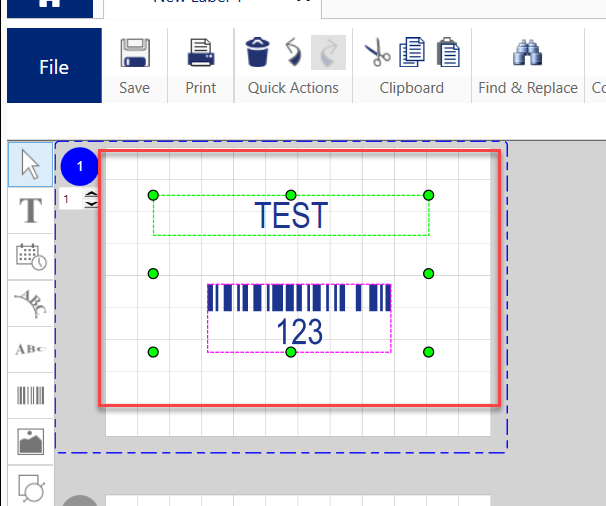

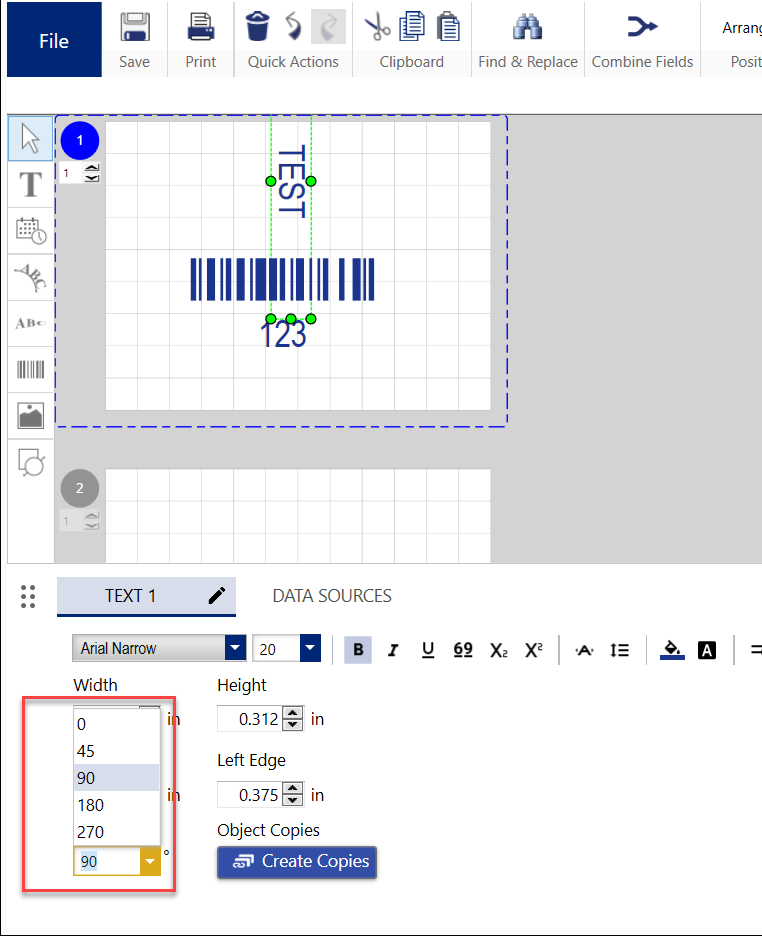

Body | Brady Workstation offers tools to rotate the entire label view, rotate individual objects on the label, or rotate multiple grouped objects while preserving their placement from each other. Rotating the Label ViewYou can rotate the viewing angle of the file in View controls.  Rotating Label Objects (Text, Barcodes, Images) 1. Select the object to rotate. 2. In the object properties, select the desired angle of rotation. By default 0, 45, 90, 180 and 270 are available, however you can also add any custom degree in between these values. Rotating Multiple Label Objects At Once (Grouping)Note: You cannot group objects if one of the selected objects is rotated, is a date and time object, or is itself a grouped object. The object grouping options will be grayed out. If the Barcode Human readable text does not group and rotate as expected, make sure the human readable position is not set to "free" in barcode properties. 1. Hold "Ctrl" and click each label object you want to rotate. 2. Go to Arrange > select Group. 3. Now go to Shared Properties and enter an angle.
|
|
---|
