Body | Graphics and Line Modes

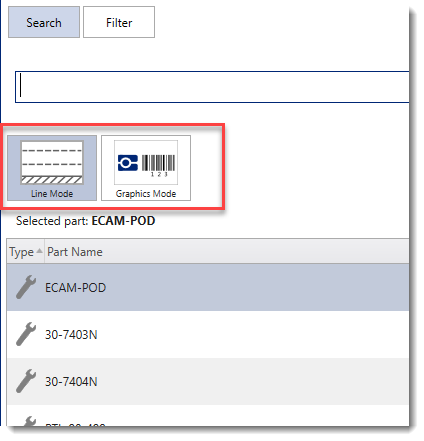

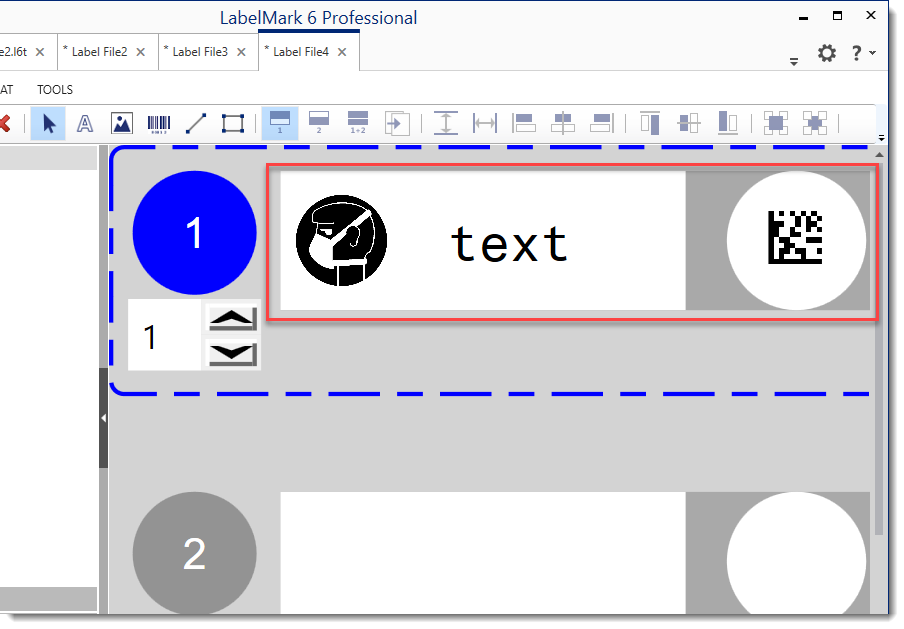

Graphics
Graphics Mode allows free-form creation of label content. This mode allows adding images, text fields and barcodes.

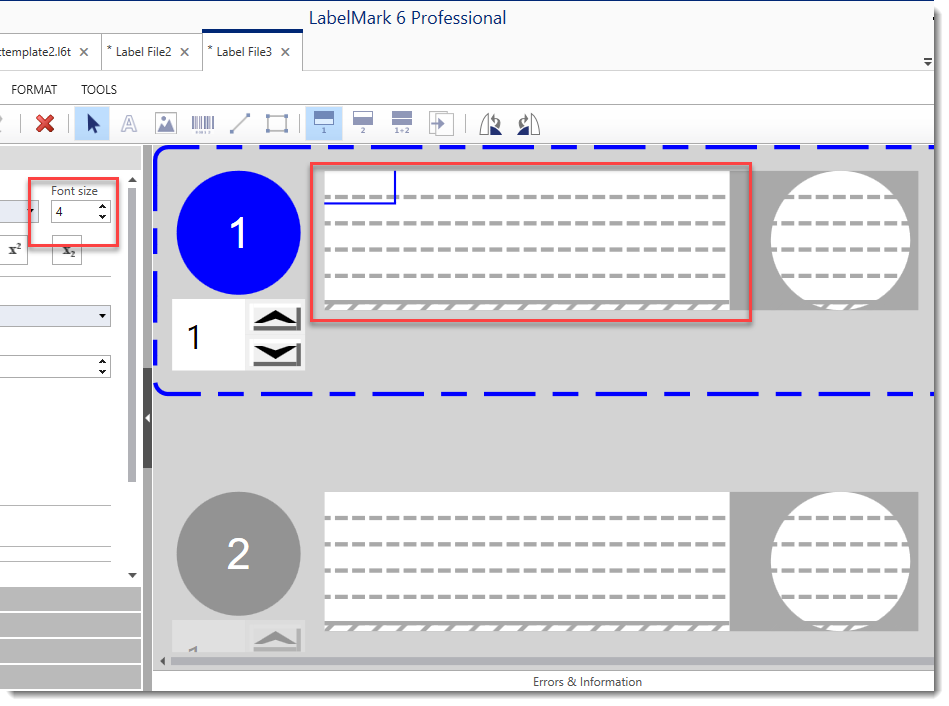

Text
Text Mode formats the printable label area into equal lines for text entry. The number of lines is dependent on the font size chosen. The smaller your font, the more lines of text can be fit onto the label.
Graphics and Line Modes in Prior LabelMark Versions
LM 1 and 2 - referred to as free form and fixed line mode
LM 3 and 4 - installed as two separate applications, LabelMark Plus allowed graphical content. LabelMark (plain) featured text-only capabilities.

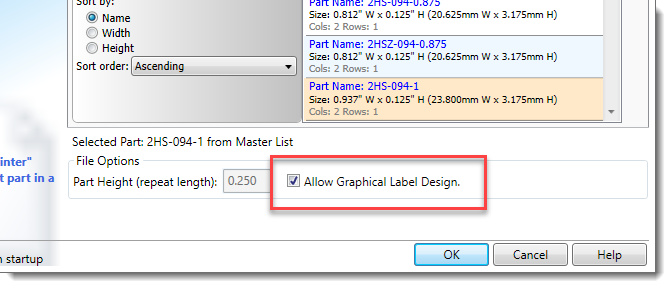

LM 5 - Introduced the graphics feature with the “Allow graphical label content” checkbox
 |
|
|---|
