Create a Wrap Label in Express Labels Mobile Application




  1. Open the Express Labels Mobile application.

  1. Connect your printer to the application.

      3. Select Wrap.

     Note: You need to go to Settings (3 lines in the upper left), then Presets and select Electrical & Datacom for the Wrap app to show.

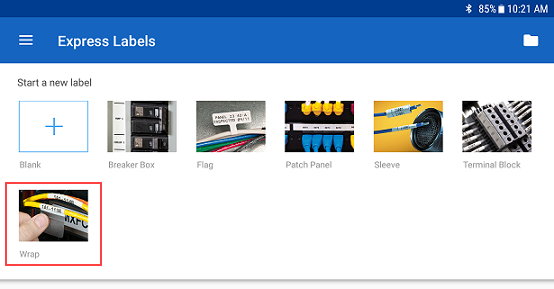

 Express Labels Mobile App - Main Menu - Wrap.png

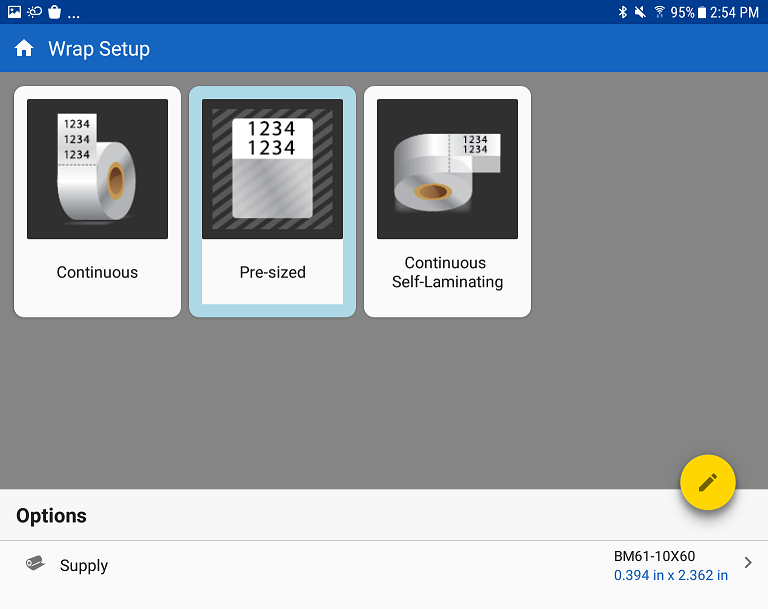

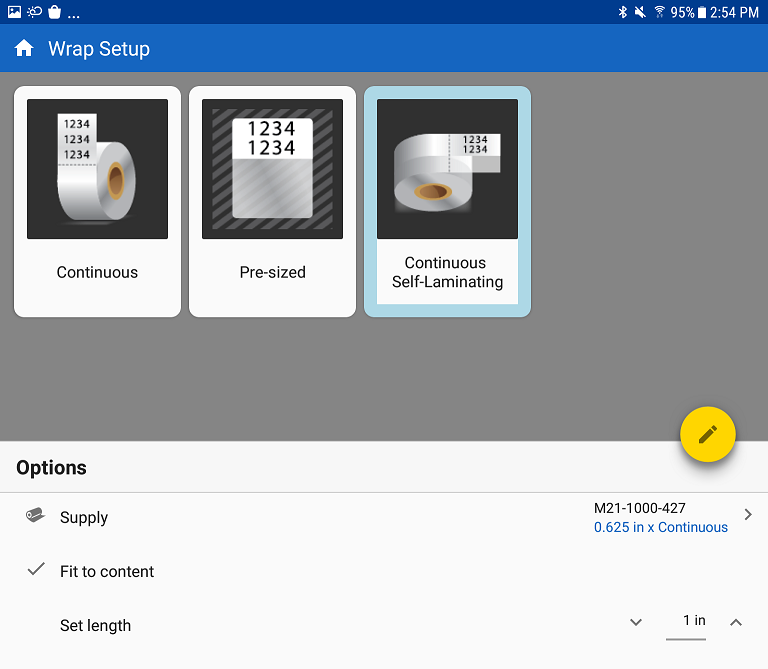

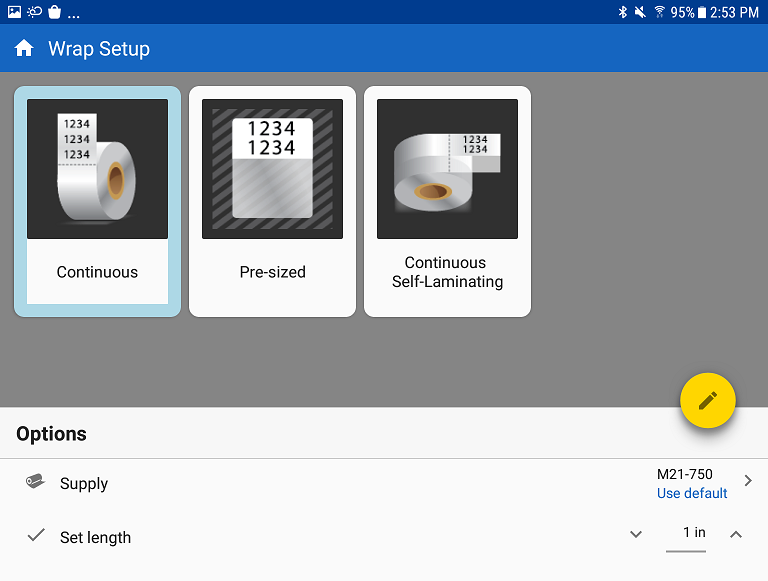

  1. Select the Wrap type on the Wrap Setup page.




  1. Select the pencil in the yellow circle to add text to the label.

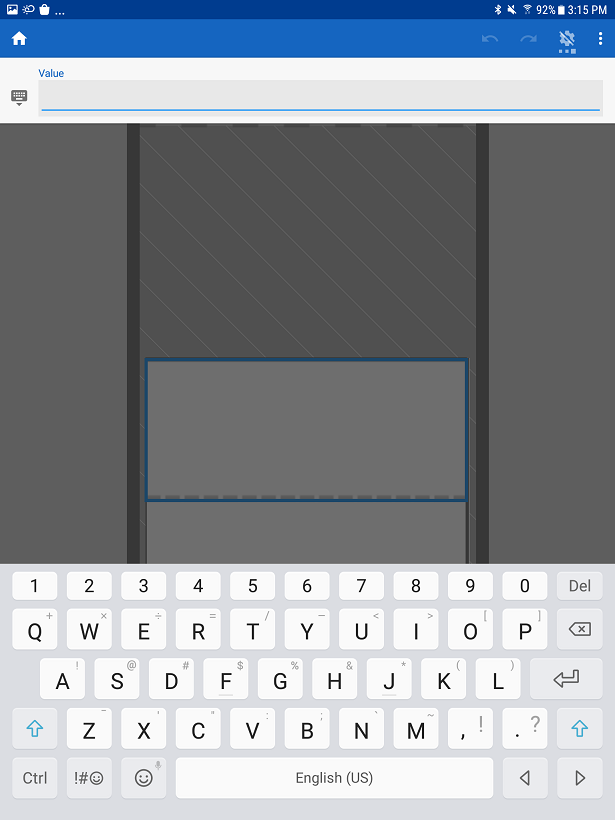

  1. Enter the Value for the label.
Note: Refer to Express Labels mobile app - Data Input Options: Type, Date/Time Stamp, Import and Graphic Image for more information on the different types of values.



  1. Adjust the text, paragraph and object settings as needed.

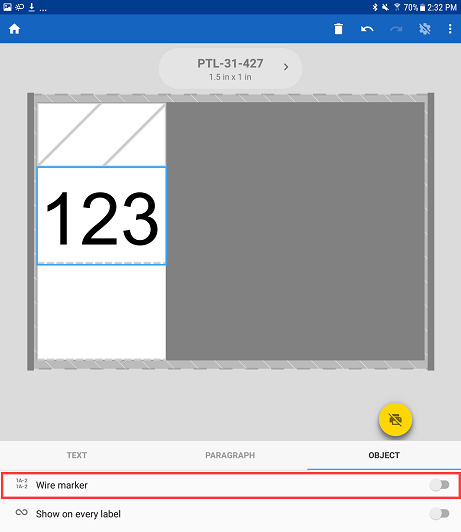

Note: To repeat the text on each line of the label, select Object and Wire marker.

Wire marker

  1. Once all information is entered, select the print icon.
