Article Number	000012742

Title	Express Labels Mobile - How to Create a Pipemarker Label and Arrow Tape

Body

Create Labels

Create a Pipemarker Label
Create Arrow Tape

Create a Pipemarker Label

Select Pipemarker in the Express Labels Mobile application.

Note: If you do not see Pipemarker in your options, view Presets in Settings: Express Labels Mobile - How to Access Other Label Preset Types.

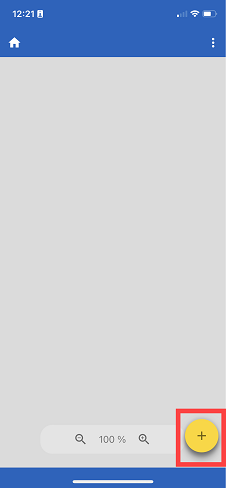

Select the plus sign in the yellow circle.

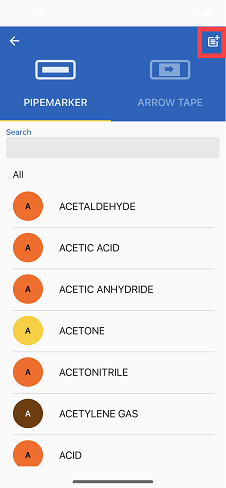

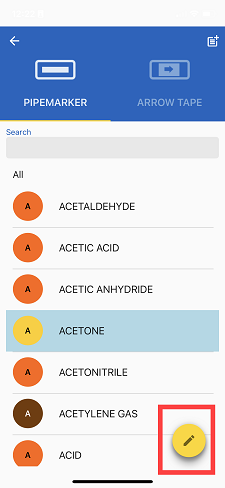

Select the Pipe Contents from the list or select the paper and plus sign in the top right corner to add different Pipe Contents.

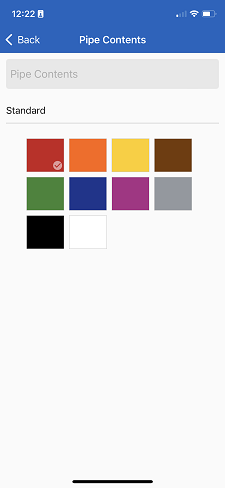

Note: If you select to add a new Pipe Content, enter the name in Pipe Contents and select the Standard Color.

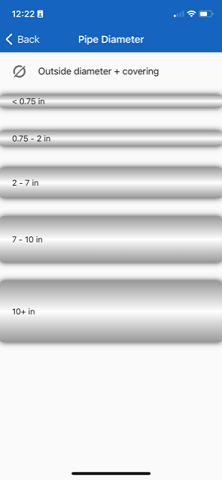

Select the Pipe Diameter.

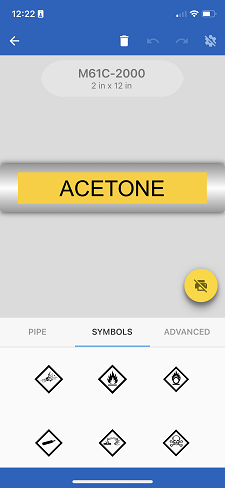

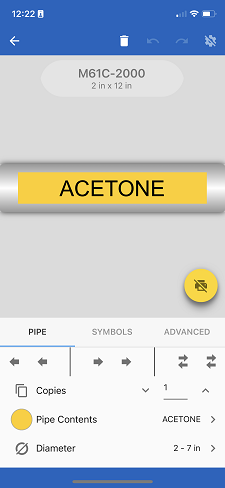

Select the settings for the Pipemarker label under Pipe, Symbols and Advanced.

Note: To print the label multiple times, select the up arrow for the desired quantity for Copies.

Pipe properties

Select the printer in the yellow circle to print the label.

Create Arrow Tape Labels

Select Pipemarker in the Express Labels Mobile application.

Select the plus sign in the yellow circle.

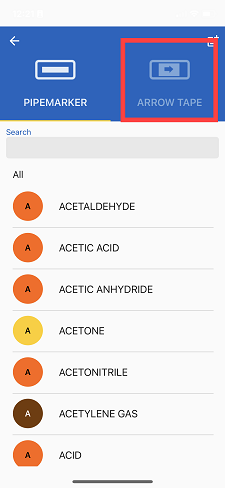

Select Arrow Tape.

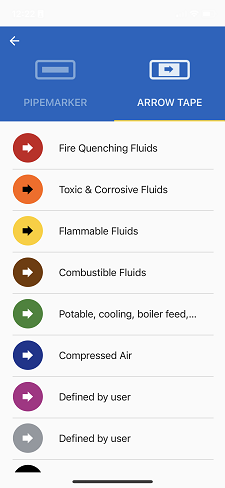

Select the Arrow Tape color.

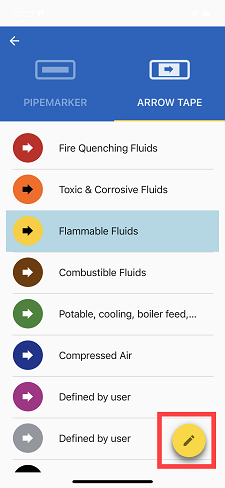

Select the circle with the pencil to create the label.

Format the arrow tape as applicable.

Note: Scroll through the options to increase Copies.

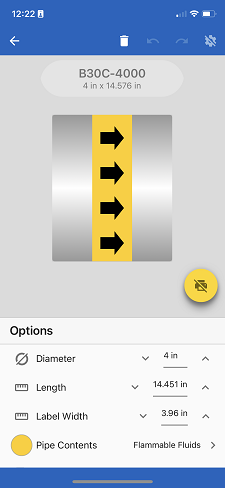

Arrow tape options

Select Print.
