BMP61 - How to create WireMarker Label type

« Go Back

Content


Article Number000008206
TitleBMP61 - How to create WireMarker Label type
Body
The WireMarker label type is designed to repeat entered data down the length of the label. The data repeats as many times as possible, considering the font size and the wire size selected.

User-added image


  • Die-cut, self-laminating, or continuous media can be used for WireMarker labels.

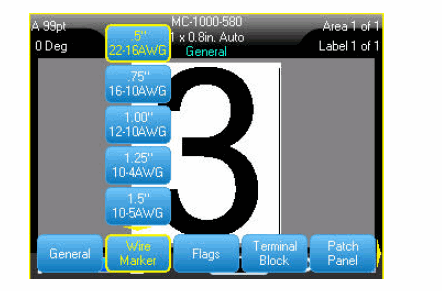

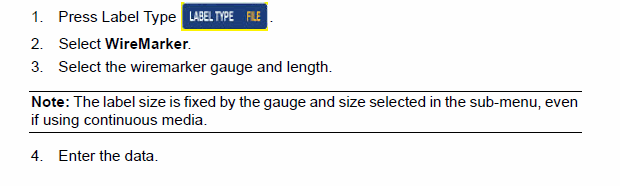

To use the WireMarker application:

User-added image

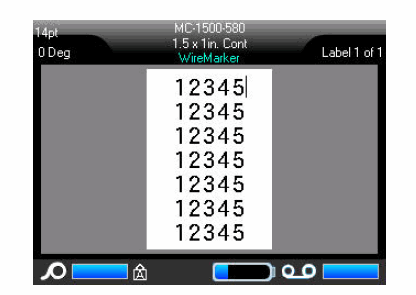

The data is repeated down the wiremarker label as many times as the length of the label allows and the font size used. The smaller the font size, the more the data is repeated.

User-added image

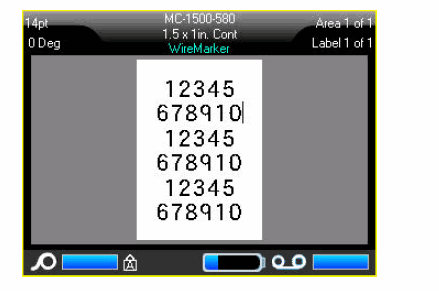

If you press [Enter] to start a new line of text, a space opens below each line of repeated data and begins to repeat the next line of text as you enter it.

User-added image
