Body | This information can also be found in the BMP61 User Manual: BMP61 - User Manual Breaker BoxBreakers are usually arranged in two columns or along one row, depending on geographic regions. The breaker positions are numbered left-to-right or top-to-bottom, depending on label orientation. This numbering system is universal across various competing manufacturers of breaker panels.To create Breaker Box labels:

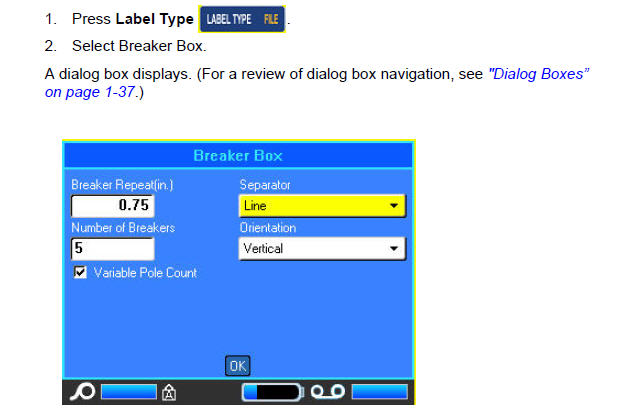

 3. In the Breaker Repeat: field, enter the width of a standard breaker.4. In the Number of Breakers: field, enter the number of breakers to be labeled.This produces one continuous strip, separated by the Breaker Repeat width, vertically aligned for US breaker boxes, or horizontally aligned for EU breaker
boxes.The BMP61 firmware also includes the pole count to calculate the distance between breakers to ensure accurate spacing. A single-pole breaker takes up only one space in the electrical panel, while a double-pole takes up two.5. If the breakers contain different pole counts, select Variable Pole Count to place a checkmark in the option box.

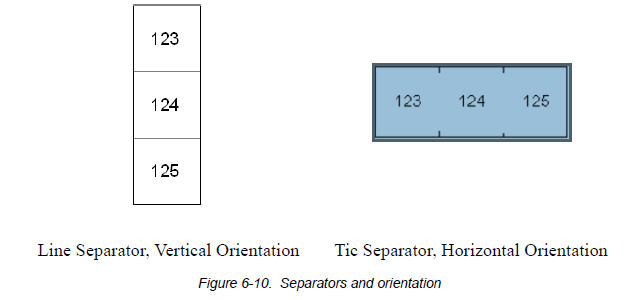

6. In the Separator field, from the drop down list, select the separator to use.

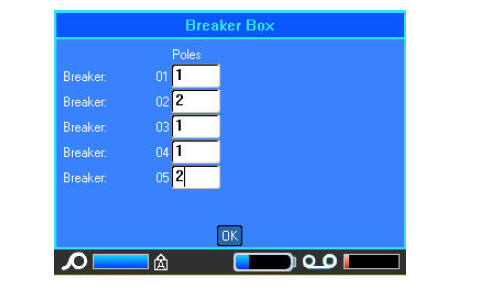

 7. In the Orientation field, from the drop down list, select the orientation to use.8. When finished, select OK.If Variable Pole Count is selected, the Breaker Box Pole count dialog displays.
The number of poles for each breaker defaults to 1.9. Select the Breaker number field to change and enter the appropriate number.10. When finished, select OK .

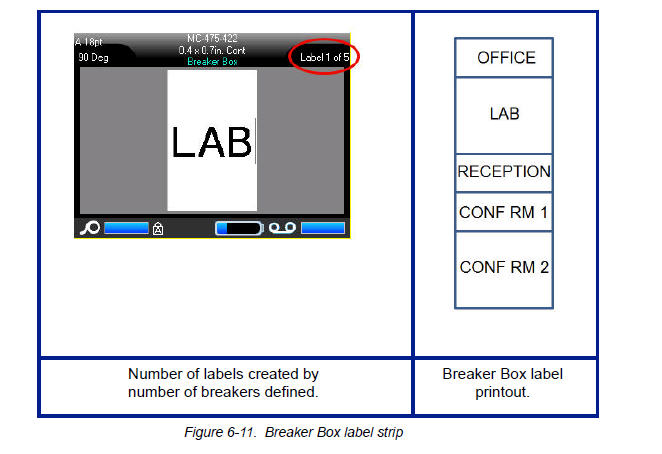

 11. On the Editing screen, enter the unique data that will display on the label for each breaker.Each breaker is consigned to a single label, the number of labels designated by the number of breakers defined. The number of labels display in the Header bar. Use the Next Label and Prev Label keys to move to the different labels. The Header bar indicates which label you are on.Use Preview to view the labels before printing.
 |
|
|---|
