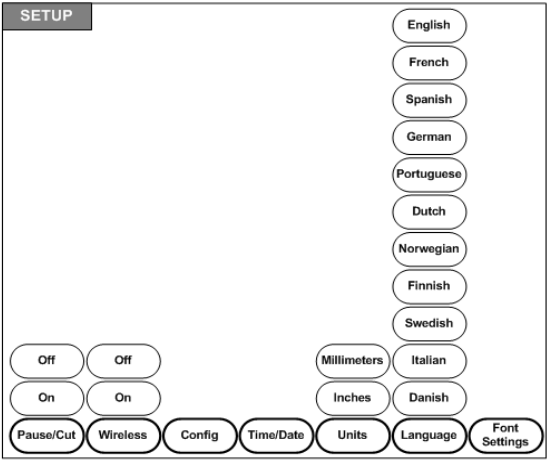

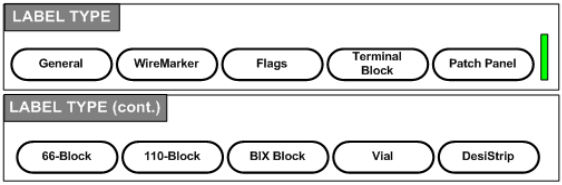

Body | BMP51 Menu OptionsSetup The Setup menu has options for Pause/Cut, Wireless, Config, Time/Date, Units, Language and Font Settings. Label TypeLabel Type menu option includes General, WireMarker, Flags, Terminal Block, Patch Panel, 66-Block, 110-Block, BIX Block, Vial and DesiStrip. Font

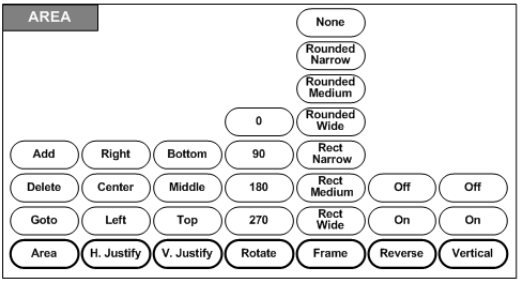

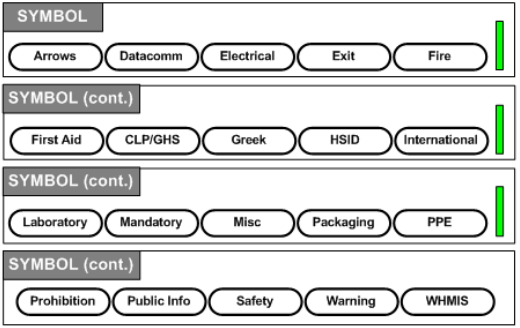

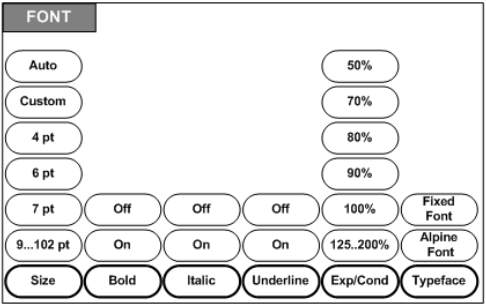

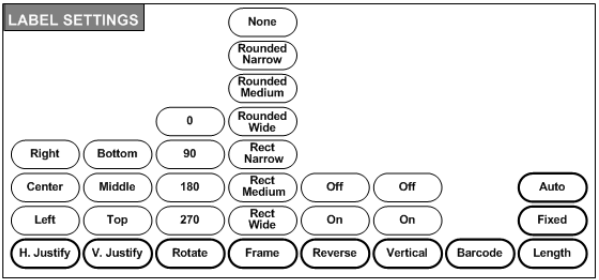

Font menu options include Size, Bold, Italic, Underline, Exp/Cond and Typeface.  FileFile menu option includes Save, Open and Delete.  Symbol Symbol menu includes Arrows, Datacomm, Electrical, Exit, Fire, First Aid, CLP/GHS, Greej, HSID, International, Laboratory, Mandatory, Misc, Packaging, PPE, Prohibition, Public Info, Safety, Warning, and WHMIS. Label SettingsLabel menu options include H. Justify (Horizontal), V. Justify (Vertical), Rotate, Frame, Reverse, Vertical, Barcode and Length. AreaArea menu options include Area, H. Justify (Horizontal), V. Justify (Vertical), Rotate, Frame, Reverse and Vertical. Related information
|
|
|---|
