Body | When the BBP85 is new out-of-the-box, there are a series of foam inserts inside the printer. Most of them are connected together by a ribbon, when the ribbon is removed it takes with it all but one foam piece.

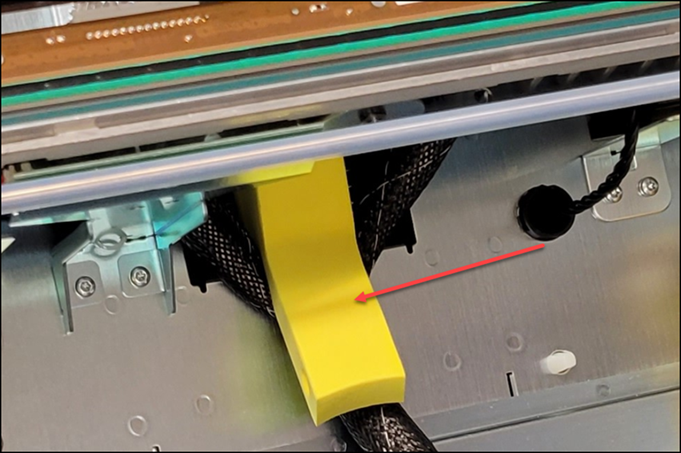

There is a larger foam piece beneath the printhead of the printer that must be removed. If this foam piece is not removed it will cause the unit to print poorly.

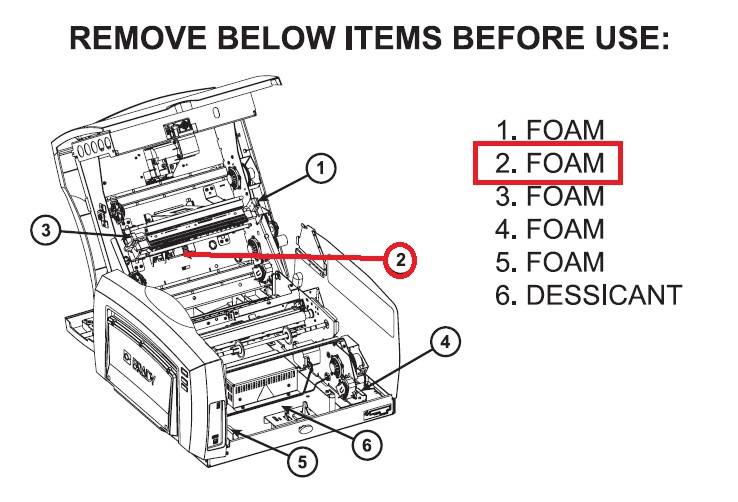

Please see the diagram below that outlines the positions of all the foam inserts.

|
|
|---|
