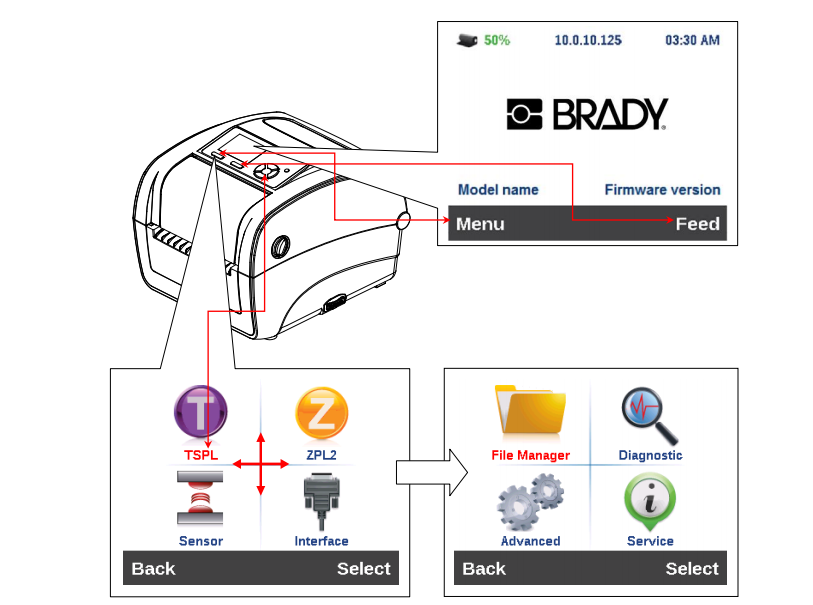

Press the “Menu” button to enter the main menu. Use the navigation button to scroll the item on main menu. The selected item will turn red. Press the “Feed” button to enter the setting list.

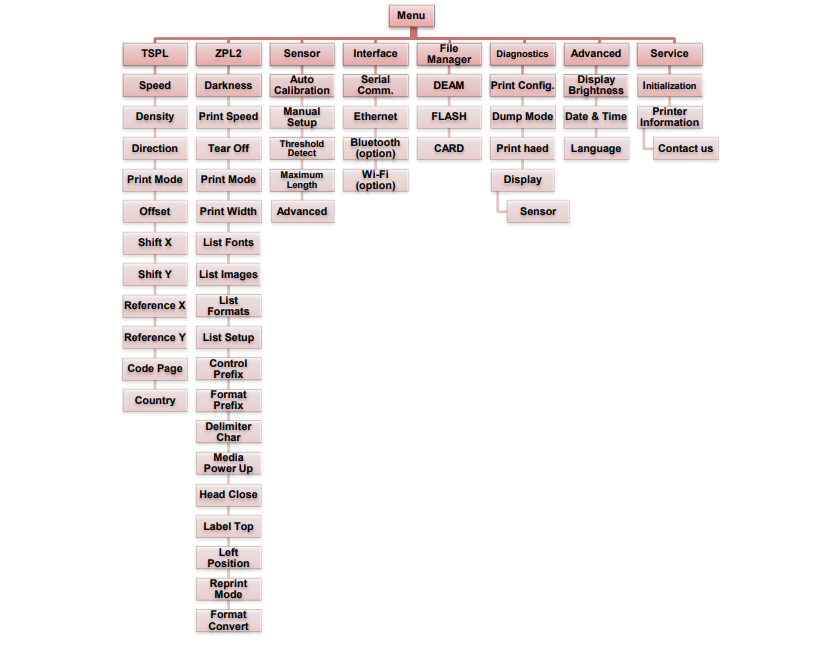

Main Menu Overview
There are 8 categories for the main menu. You can easy to set the settings of printer without connecting the computer. Please refer to following sections for more details.

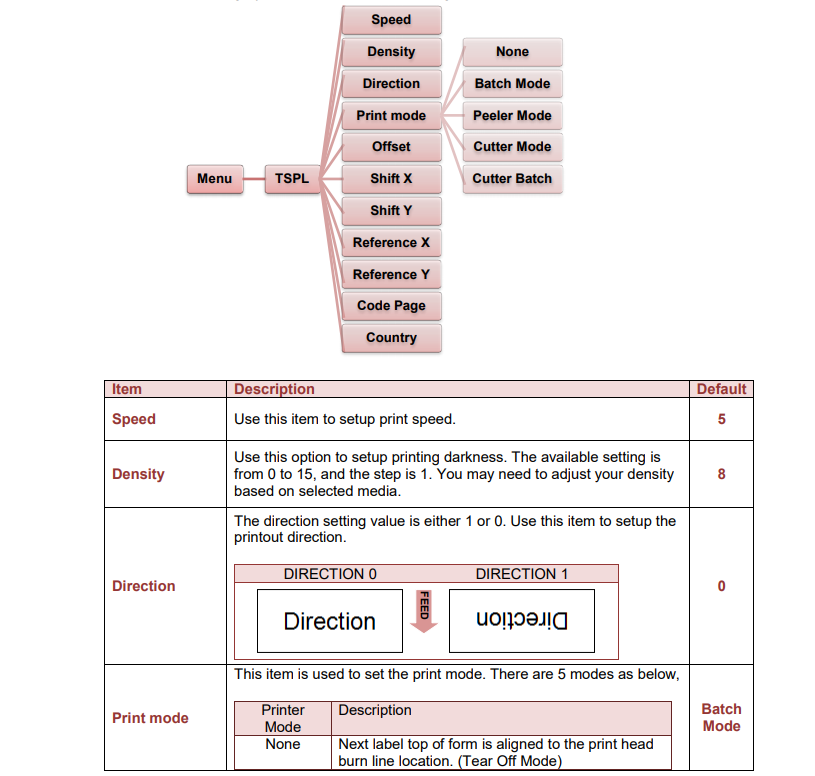

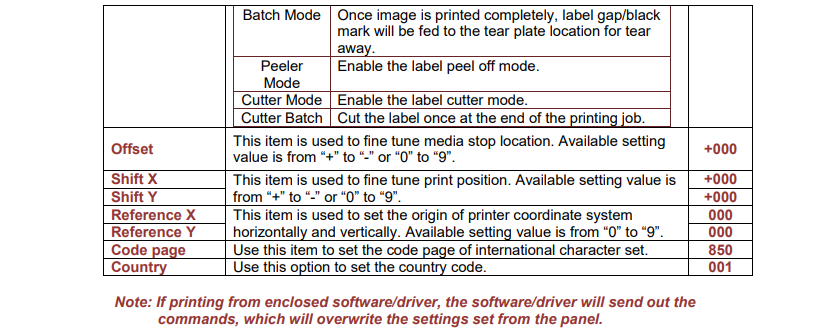

TSPL2
This “TSPL2” category can set up the printer settings for TSPL2.

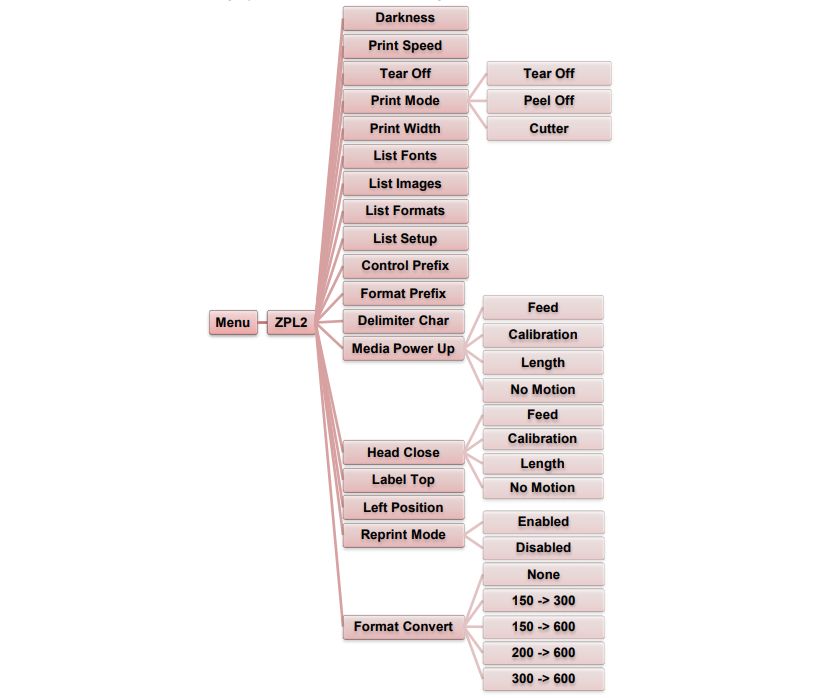

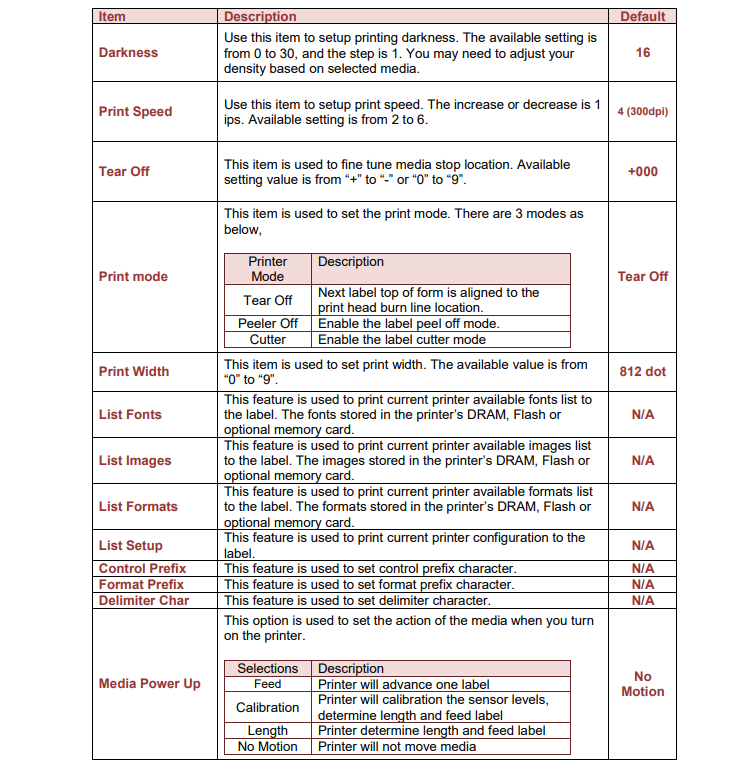

ZPL2

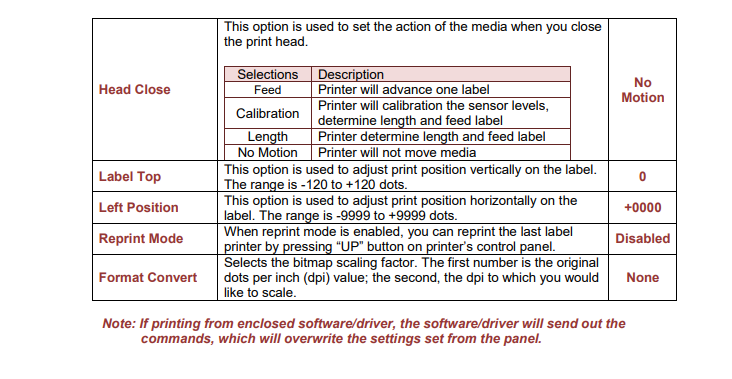

This “ZPL2” category can set up the printer settings for ZPL2.

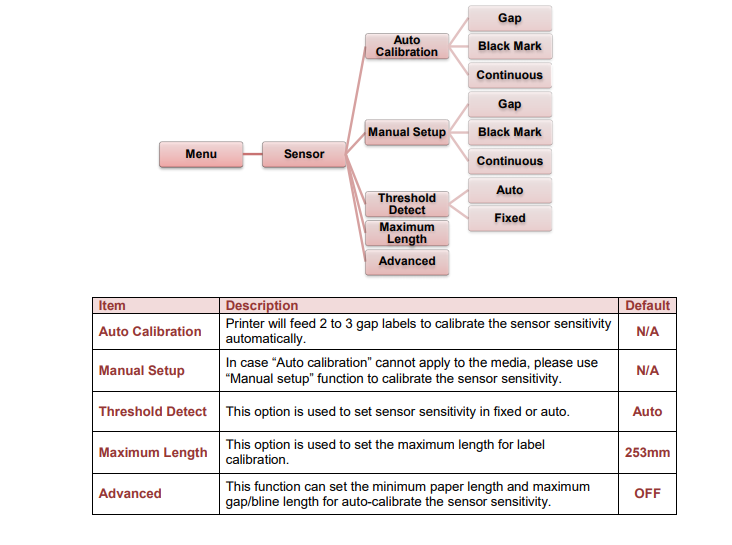

Sensor
This option is used to calibrate the selected sensor. We recommend calibrate the sensor before printing when changing the media.

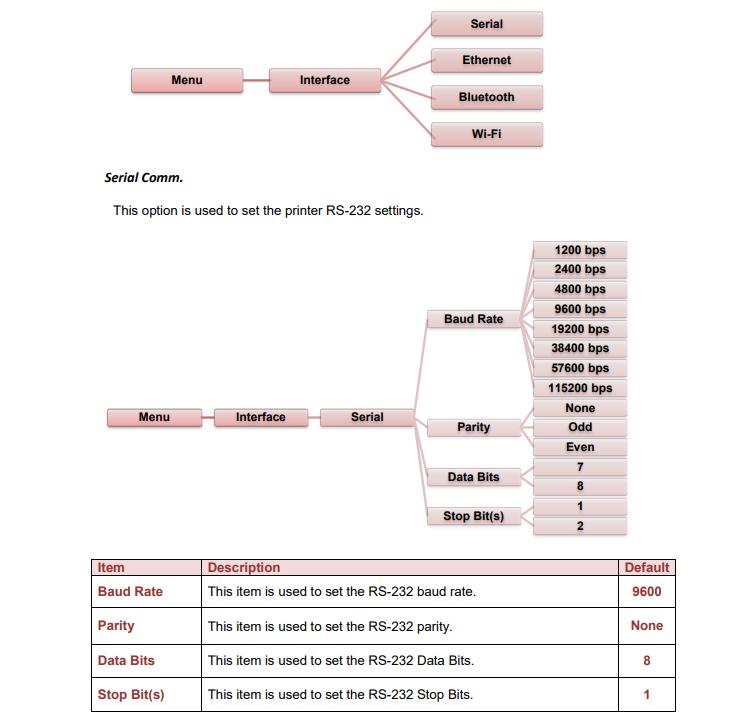

Interface
This option is used to set the printer interface settings.

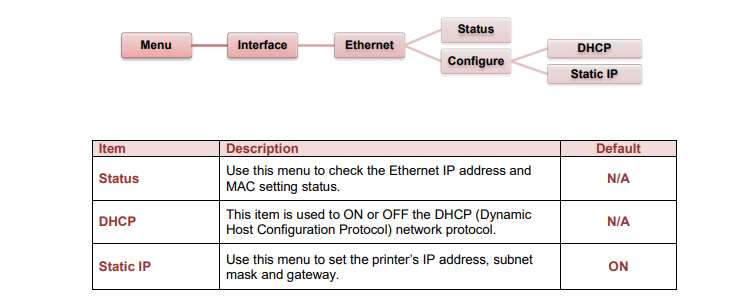

Ethernet
Use this menu to configure internal Ethernet configuration check the printer’s Ethernet module status, and reset the Ethernet module.

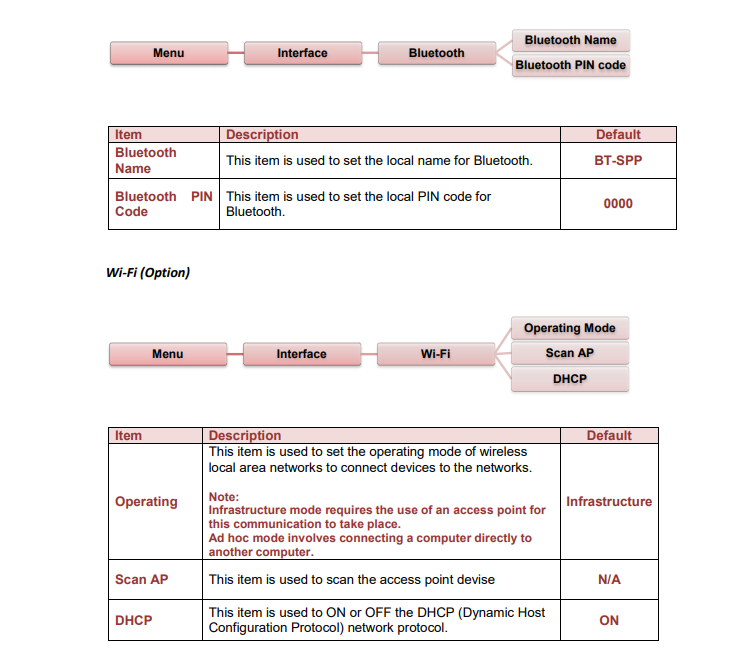

Bluetooth (Option)
This option is used to set the printer bluetooth settings.

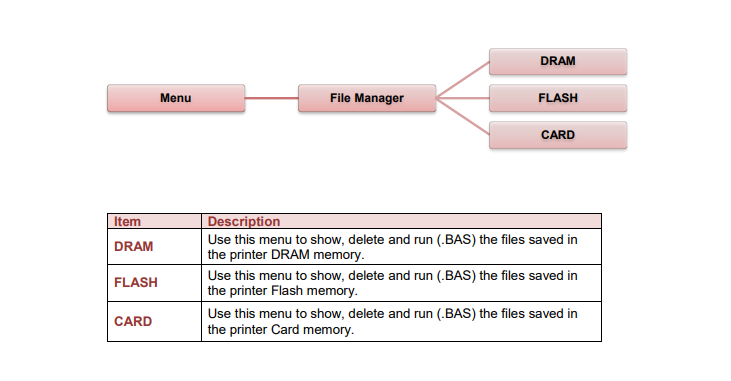

File Manager
This feature is used to check the printer available memory and file list.

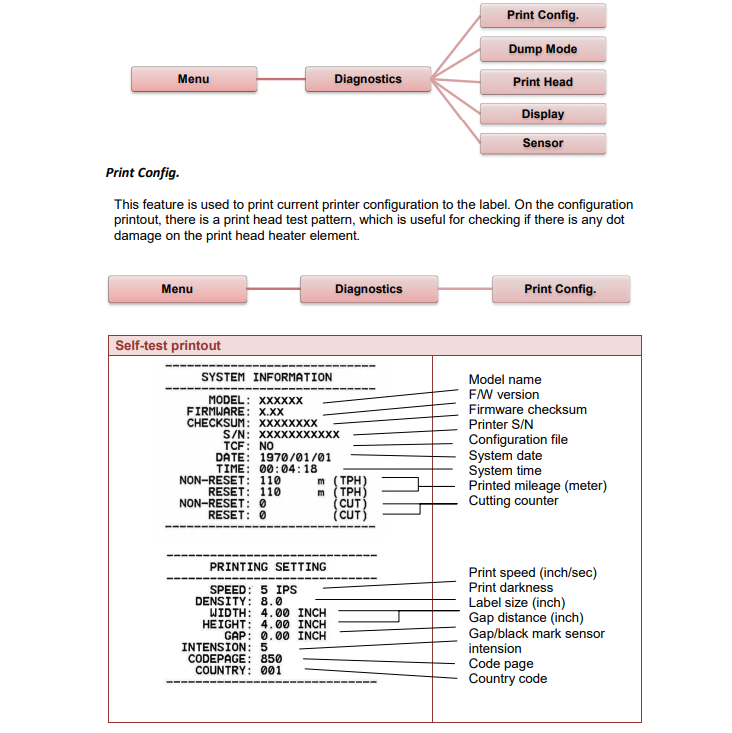

Diagnostics

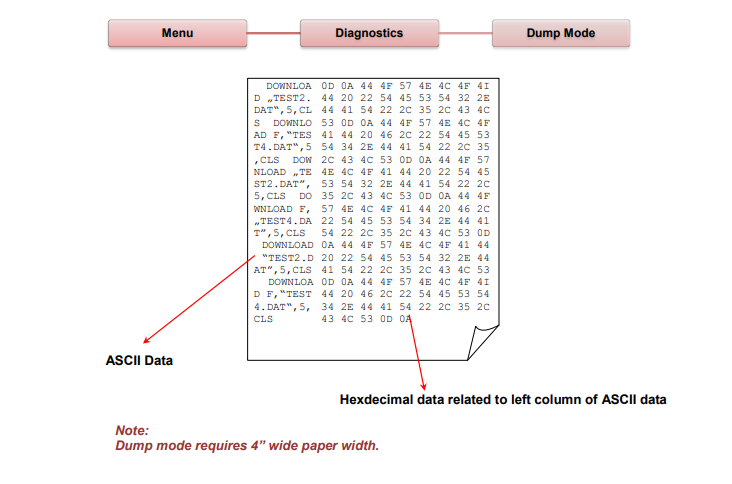

Dump Mode
Captures the data from the communications port and prints out the data received by printer. In the dump mode, all characters will be printed in 2 columns. The left side characters are received from your system and right side data are the corresponding hexadecimal value of the characters. It allows users or engineers to verify and debug the program.

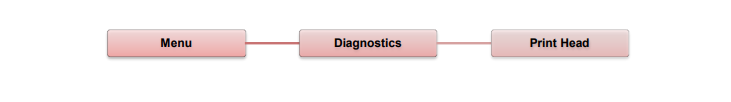

Print Head
This feature is used to check print head’s temperature, resistance and bad dots.
Display
This feature is used to check LCD’s color state.

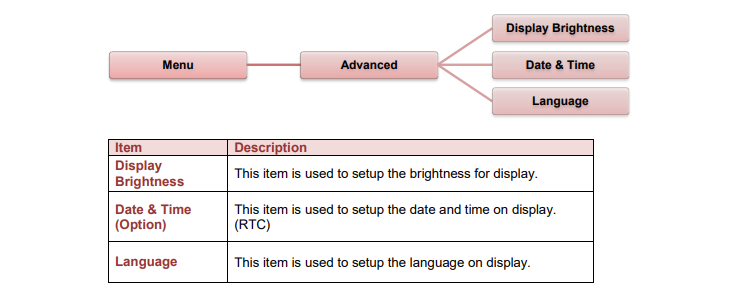

Advanced
This feature is used to set the printer LCD settings.

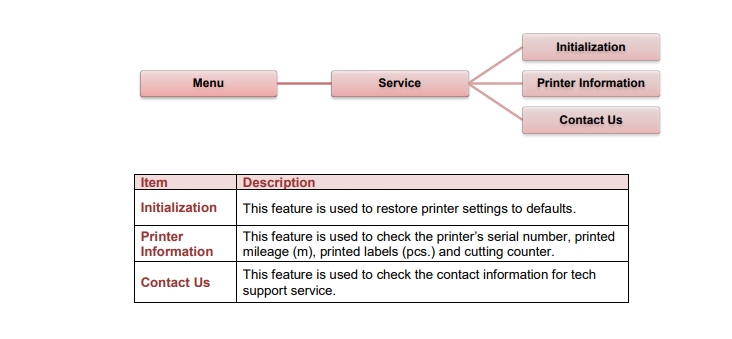

Service
This feature is used to restore printer settings to defaults and checking information for printer.
