Adding Brady Printer Fonts Into Brady Workstation

Printable View
« Go Back

Content


Article Number000012523
TitleAdding Brady Printer Fonts Into Brady Workstation
Body
Issue

Some Brady printer models have LCD screens that allow for standalone (not PC connected) label creation. These standalone label creation apps use fonts that may not be available in Brady Workstation. If users move to Brady Workstation for label creation needs, they must add these fonts (as of BWS Shell 4.13.0.4)

Resolution

Brady Workstation uses the True-Type fonts (TTF) available for your Windows operating system. Adding a font in Windows will make the font available in Brady Workstation. You can find fonts used by standalone Brady printers in the firmware update files for each respective printers.

Finding Brady Printer Fonts

Note: See attached Arial Alt Mono (Arialalt.ttf), Arial Alt Mono for Brady Bold (Arialtbd.ttf) and Arial 65 for BRC ( AR65v2.ttf).

  1. Download the firmware file for your printer model. Firmware files can be found on BradyID.com.

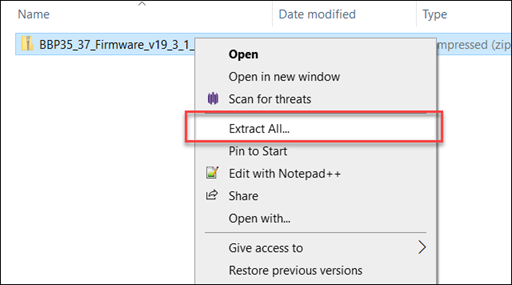

  1. Extract the firmware.

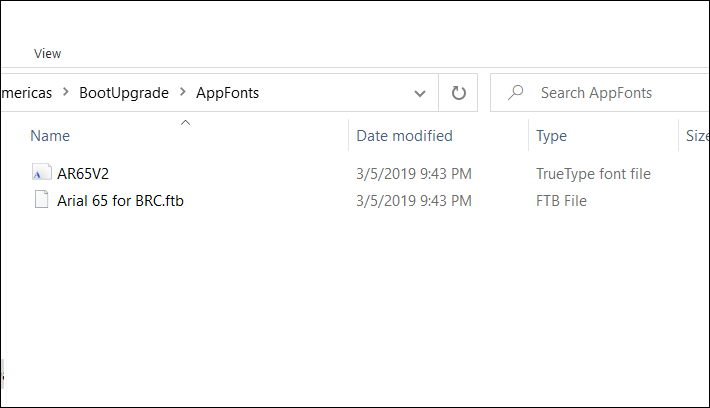

  1. Navigate to the fonts folder.
Note: BBP37 fonts are stored in C:\Users\%USER%\Downloads\BBP37 fw\BBP35_37_Firmware_v19_3_1_103554\USB Upgrade\Americas\BootUpgrade\AppFonts.


  1. Install the font in Brady Workstation: Brady Software - Import Fonts.
