Body | A5500 Wire DiameterWe recommend always leaving the wire diameter setting on auto. This sets it to the lowest wire diameter for the label size installed. The maximum wire diameter that can be used in the BradyPrinter A5500 printer, INCLUDING the wire's outer jacket, is 0.600". Exceeding this diameter will jam and potentially damage the printer. If a wire diameter less than 0.060" (including wire jacket) is used, the flag label will not adhere successfully.

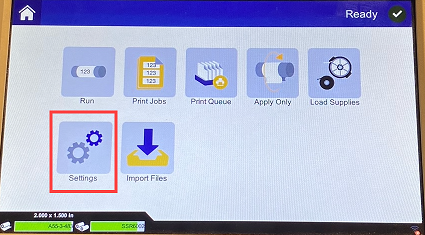

- Select Settings.

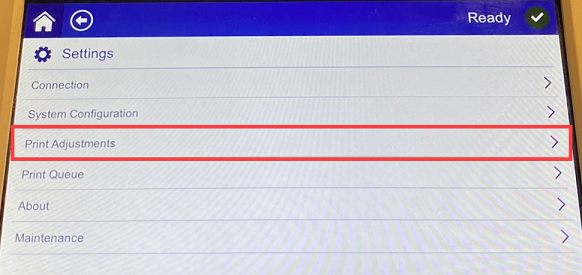

- Select Print Adjustments.

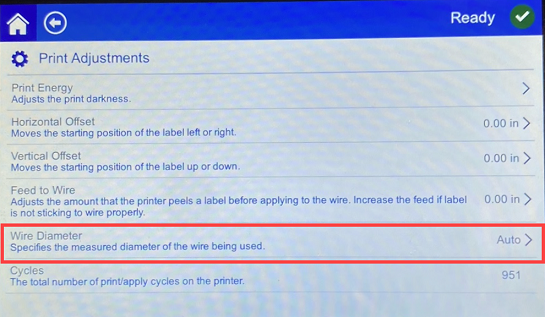

- Select Wire Diameter.

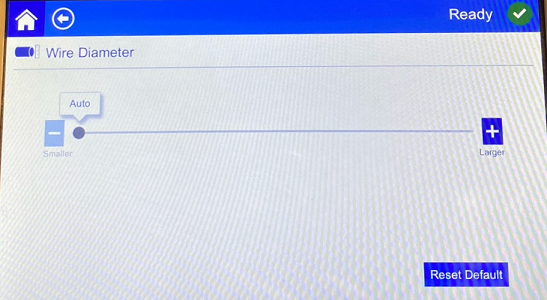

- Adjust Wire Diameter as needed.
