A5500 - Adjust Feed to Wire

« Go Back

Content


Article Number000013000
TitleA5500 - Adjust Feed to Wire
Body
Feed to Wire Settings

Feed to Wire adjusts how much the printer peels the label before adhering on to the wire. You may need to adjust this for braided wires because there is less contact area to which the labels can adhere.

Important: Setting this too high can cause labels to jam.


  1. Select Settings.

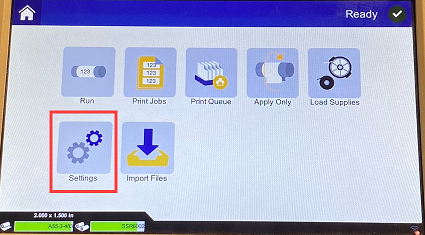

Main menu screen

  1. Select Print Adjustments.

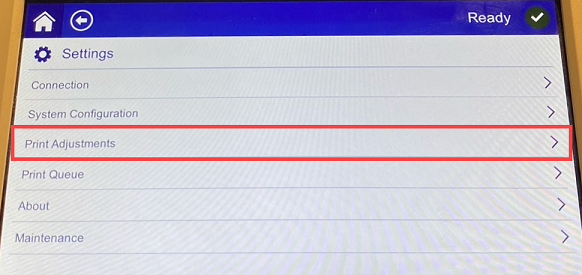

Settings_Print Adjustments

  1. Select Feed to Wire.

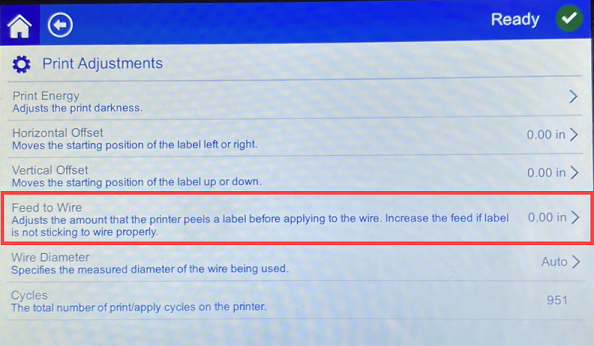

Print adjustments_Feed to wire

  1. Adjust settings as needed.

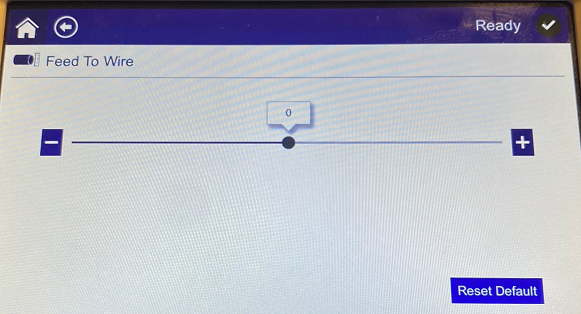

Feed to Wire
